| Place of Origin: | HeBei China |
|---|---|
| Brand Name: | Pangolin |
| Price: | Negotiable |
| Packaging Details: | According to customer needs |
| Delivery Time: | 5-15work days |
| Payment Terms: | T/T |
| Manufacturing Process: | Forging | Service Life: | Long |
|---|---|---|---|
| Product Name: | Cones Hole Opener | Characteristics: | Not Easily Damaged |
| Surface Treatment: | Welding | Quality: | Reliable |
| High Light: | 2000mm Drilling Hole Opener,Roller Cone Bit 2000mm,Hard Formation Hole Opener |
||

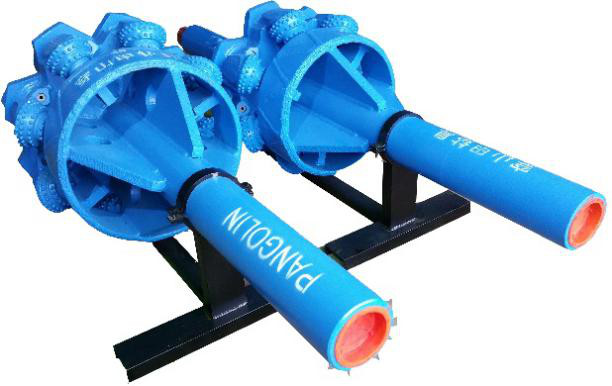

2000mm Hole Opener Roller Cone Bit For Hard Formation
Introduction
Cone reamer is a commonly used drilling tool in rock excavation. The roller cone rock reamer is suitable for various types of trenchless drilling rigs and can be used for reaming construction of various rock formations by our company. The specification covers Φ260-1800 mm.
Product parameters
| Product name | Cones Hole Opener |
| Manufacturing Process | Forging |
| Quality | Reliable |
| Service life | Long |
| Characteristics | Not easily damaged |
| Surface Treatment | Welding |
| Material | High quality alloy steel |
| Disassembly, repair | Convenient |
| Failure rate | Low |
| Color | Request |
|
Reamer Size |
Cone size and # of Cones | Threads | |||
| Cone size | #of Cones | Cone size | # of Cones | ||
| 10“ | 6 1/2” | 3 | NC23 NC26(2 3/8IF) D50 D80 NC31(2 7/8IF) NC38(3 1/2IF) | ||
| 12“ | 8 1/2” | 3 | |||
| 16“ |
8 1/2”or 9 1/2” |
4 |
For 8 1/2”-9 1/2” Cone: NC23 NC26(2 3/8”IF) D50 D80 NC31(2 7/8”IF) NC38(3 1/2”IF)
For 12 1/4”-13 5/8” Cone: 4”IF 4 1/2IF 5 1/2FH 6 5/8FH |
||
| 18”-20“ | 5 | 12 1/4” | 4 | ||
| 22”-24“ | 6 |
12 1/4” or 13 5/8” |
5 | ||
| 28”-30” | 7 | 6 | |||
| 32”-34” | 8 | 7 | |||
| 36“-38” | 9 | 8 | |||
| 40“-42” | 10 | 9 | |||
| 44“-46” | 11 | 10 | |||
| 48”-50” | 12-13 | 11 | |||
Advantages
Most favourable price and high quality
Bearing type: 1. Sealed bearing and non-sealed bearing. 2. Metal sealed journal bearing. 3. rubber sealed journal bearing
cutting structure: The back cone and the teeth all surface is are hardfaced strengthening, improved steel tooth shape and welding materials,showing teeth higher
Application: soft, low compressive strength, high drillability, such as shale, clay, salt, etc
Our products and services are certified to ISO 9001:2008 and API, and our mature production technology ensures that the quality meets international requirements.
Used in
It is suitable for the large size well, mining, soft with low compressive strength and high drillability, such as shale, clay, salt bed and infrastructure applications.
Pangolin (China) Construction Machinery Co., Ltd. is a drill manufacturer with complete testing equipment and strong technical force. Our products have a wide range, high quality, reasonable price, and timely delivery, which are widely used in oilfields, drilling, non-excavation fields and other industries. Our products are widely recognized and trusted by users, and can meet the ever-changing economic and social needs. To
We welcome new and old customers from all walks of life to contact us for future business relations and mutual success!
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
4. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.
5. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
6. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.
7. Competitive price:
A: Our factory can supply you the lowest price due to direct sale to customers without distributor!
