| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | Pangolin |
| Price: | Negotiable |
| Packaging Details: | According to customer needs |
| Delivery Time: | 5-15work days |
| Payment Terms: | T/T |
| Customized: | Yes | Suitable HDD Drill Rig: | Vermeer, Ditch Witch, Case, American Auger, Etc |
|---|---|---|---|
| Hole Diameter: | 140mm=180mm | Size: | 108,127,145,165mm Or Customized |
| Suitable Drill Rod: | 60,73,76,83,89mm Or Customized | Application Rock Formation: | Weathered Rock Drilling |
| High Light: | 145mm rock Trihawk Drill Bit,HDD 145mm Eagle Claw tooth Bit,Trihawk Drill Bit HDD 145mm |
||

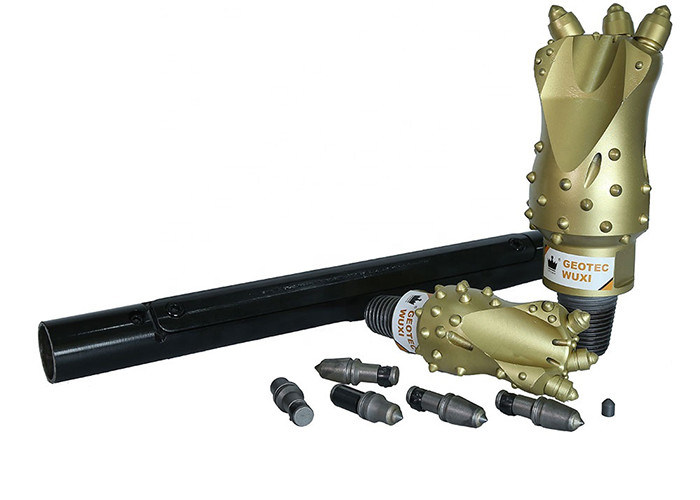

Weathered Rock Drilling Tri Tooth 145mm Eagle Claw Bit
Eagle Claw Tooth Bit Trihawk Bit For Horizontal Directional Drilling
Introduction
When grinding, high-volume hard disk blades and drill bits, we provide the most popular rock drill bit Eagle Claw, which can maintain low wear for a long time and use cemented bits for a long time. Carbide teeth can grind the hardest rocks.
It uses three standard conical milling cutter teeth, and its thick hard surface is spirally wound on each tooth, making it have better occlusal performance and longer service life. The foundation around each tool tooth is an additional cemented carbide block, lined with a high-impact area to extend the service life.
Advantages
Perfectly balanced cutting design for smooth, efficient operation.
Cutter teeth available with carbide hardfacing for maximum durability.
Aggressive tri-tooth carbide cutting action gets through the hardest conditions.
Ouickly and easily change out carbide cutter teeth with straight-thru knockout holes.
Smooth running with minimal vibration to drill stem and drill rig.
Dome carbides provide great wear resistance without cutting the top of the hole for great steering.
Minimize the chance of clogging with a built-in check valve.
Product parameters
| Size | 108,127,145,165mm or Customized |
| Suitable drill rod | 60,73,76,83,89mm or Customized |
| Suitable HDD drill rig | Vermeer, Ditch Witch, Case, American Auger, etc |
| Application rock formation | Weathered rock drilling |
| OD | 110mm-150mm |
| Hole diameter | 140mm=180mm |
| Drill depth | 15m |
| Hole angle | 16 |
| Drill pipe diameter | ≥ 60 |
| Applicable Industries | Construction works |
| Machine Type | Drilling Tool |
| Material | Carbon steel, Stainless Steel |
| Processing Type | Forging |
| Use | Horizontal directional drilling |
| Thread | NC23 |
| Weight | 70kg |
| Packaging | Wooden case |
| Color | Blue or Customized |
| Thread | 4 1/2""IF box and pin |
| Diameter of hole | 140mm-180mm |
Pic Show
Pangolin (China) Construction Machinery Co., Ltd. is a drill manufacturer with complete testing equipment and strong technical force. Our products have a wide range, high quality, reasonable price, and timely delivery, which are widely used in oilfields, drilling, non-excavation fields and other industries. Our products are widely recognized and trusted by users, and can meet the ever-changing economic and social needs. To
We welcome new and old customers from all walks of life to contact us for future business relations and mutual success!
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
4. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.
5. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
6. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.
7. Competitive price:
A: Our factory can supply you the lowest price due to direct sale to customers without distributor!
