| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | Pangolin |
| Price: | Negotiable |
| Packaging Details: | According to customer needs |
| Delivery Time: | 5-15work days |
| Payment Terms: | T/T |
| Specification: | Can Be Customized According To Requirements | Application: | Drilling |
|---|---|---|---|
| Customized: | YES | Tank Volume: | 5-30 ㎥ |
| Total Power: | 25-184 Kw | Cyclone (mm): | 250 -900 |
| Screen Mate: | Polyurethane | Impeller Material: | Cr26 |
| High Light: | OEM Mud Recycling Equipment,Cr26 Mud Recycling Equipment,5.5t Drilling Mud Pump |
||
Explosion Proof Hdd Mud Recycling Equipment For Drilling Fluid
Main structural features
1. Good capacity and performance: The system capacity can reach 240m3/h (1000GPM), which can meet the slurry treatment of large-scale trenchless projects.
2. The high-abrasion resistant polyurethane cyclone separator is the same as the international brand, and can be used for more than 3800 hours, with long service life and good interchangeability.
3. Explosion-proof lamps meet the requirements of night construction, easy to operate, safe and reliable.
4. All parts of the equipment are connected quickly, easy to disassemble and save time.
Advantages
1. Modular design, small footprint, flexible configuration and installation according to customer requirements.
2. The side plate of the mud tank is designed as a corrugated load-bearing type, which is safe and reliable, and can withstand larger loads.
3. The system adopts electric centralized control, which is easy to operate.
4. All the equipment are designed with corrosion resistance and wear resistance, with long service life.
5. Suitable for harsh drilling conditions, cold resistant, heat resistant, explosion-proof, leakproof, corrosion resistant and rain resistant.
6. Easy installation and disassembly, convenient for drilling personnel to move frequently.
Product parameters
| Customized | YES |
| Capacity | 50-240 ㎥/h (200-1000 GPM) |
| Screen Area | 2.2-8.4 ㎡ |
| Separation Stage | 2stage / 3stage |
| Tank Volume | 5-30 ㎥ |
| Total Power | 25-184 Kw |
| Total Weight | 5.5-20 t |
| Land Transport Dimension (mm) | customized |
| Screen material | Polyurethane |
| Cyclone (mm) | 250 -900 |
| Impeller material | Cr26 |
| Application | Drilling |
| Specification | Can be customized according to requirements |
| Model | CSJ-FN-30C | CSJ-FN-60C | CSJ-FN-120C | CSJ-FN-200C | |
| Capacity (m3/h) | 30 | 60 | 120 | 200 | |
| Slurry pump | Model | DC-EHM-1.5C | DC-EHM-3C | DC-EHM-3C | DC-EHM-4C |
| Power (Kw) | 7.5 | 11 | 22 | 37 | |
| Pressure (MPa) | 1.0~2.0 | ||||
| Shale shaker | Power(Kw) | 1.5 | 2 | 3 | 3 |
| Vibration force(KN) | 30 | 40 | 60 | 60 | |
|
Screen size (mm) |
UP | 1400X600 | 1700x700 | 1900X1000 | 2100x1200 |
| Down | 1400X600 | 1700x700 | 1900X1000 | 2100x1200 | |
| Cone Model | FN-100 | FN-150 | |||
| Cone Number | 3 | 6 | 12 | 8 | |
| Separation size (μm) | 10-30 | ||||
| Total Power (KW) | 9 | 13 | 25 | 40 | |
| System Max.Size(mm) | 1650X1450X2150 | 2000X1600X2250 | 2170X2000X2400 | 2400*2300*2400 | |
| System weight (Kg) | 1200 | 1900 | 2500 | 3500 | |

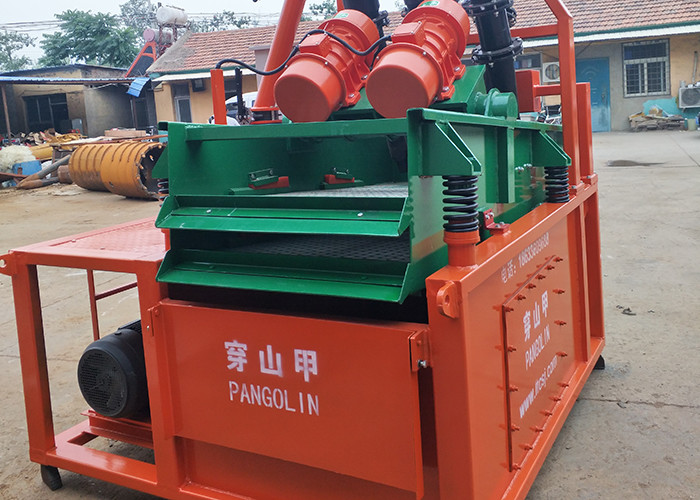

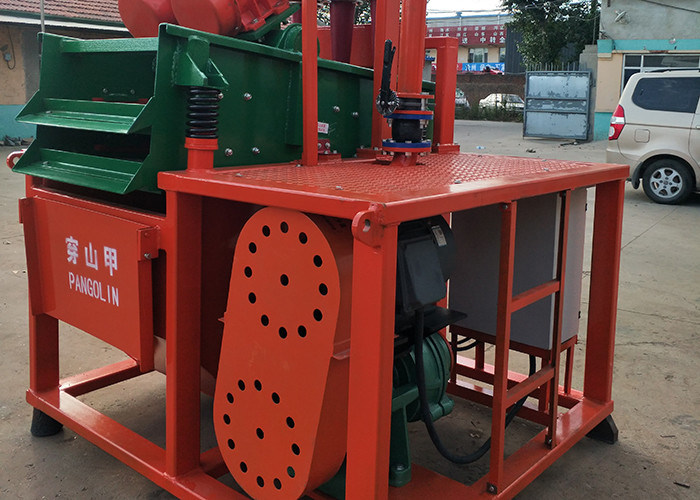

Pic Show
