| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | Pangolin |
| Price: | Negotiable |
| Packaging Details: | According to customer needs |
| Delivery Time: | 5-15work days |
| Payment Terms: | T/T |
| Flow (m3/h): | 2x240 / 240 / 200 / 180 | Viscosity: | ≤120s / ≤80s |
|---|---|---|---|
| Burden Speed (kg/min)/(lbs/min): | ≤100/220 , ≤80/176.4 , ≤35/132.3 | External Dimension: | 2650x2400x1150 , 2200x1700x1200 , 2130x1650x1150 , 2000x1650x1100 |
| Weight (kg): | 3000 / 1800 / 1400 / 1280 | Density (g/m3)/(Ib/gal): | ≤2.8/23.4 , ≤2.4/20 , ≤2.0/16.7 |
| Pressure (Mpa): | 0.25~0.40 | Hopper Dimension (mm)/(in): | Φ700*Φ150 / Φ28*Φ6 |
| High Light: | 0.25Mpa Drilling Mud Pump,mud mixing system 240㎥/h,Drilling Mud Pump 120s Viscosity |
||

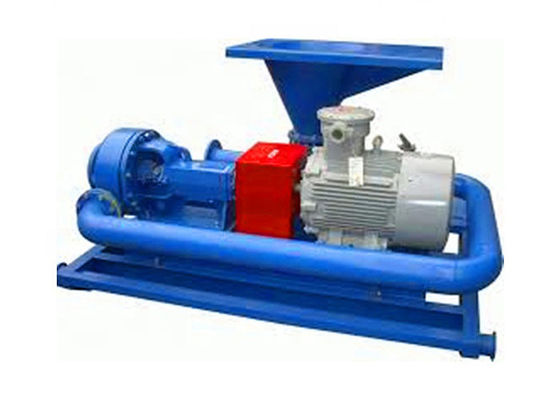

Oilfield Drilling Jet Mud Mixer
Onshore Rig Drilling Jet Mud Mixer In Petroleum Industry
Introduction
The jet mud mixer is a special equipment for preparing and increasing the weight of the drilling fluid by adding bentonite, stirring, changing the density of the drilling fluid, changing the density, viscosity and dehydration of the drilling fluid. The effect of matching with shear pump is more prominent. Jet mud mixers are equipment used in oil drilling and horizontal directional drilling (HDD) together with solids control systems. The device includes a sand pump, a jet mixing hopper and a jet mixer. The jet mixer is installed on a base with pipeline valves. Safe and stable, easy to move. At the same time, a double-nozzle mud mixer can be made according to user requirements. It is composed of a solid-controlled bentonite mud mixer and a drilling mud tank jet mixer.
Advantages
The drilling fluid flows into the jet pump at a certain pressure. The fluid in the jet pump is first ejected from the jet nozzle, and then flows into the shear tube through the mixing chamber. The material is added from the hopper to the mixing hopper, and enters the shear tube with the airflow. In this process, they are dispersed and mixed. The mixed fluid flows out of the shear tube and enters the drilling fluid tank.
Product parameters
| Matching Pump | 2xCP68-55 / CP68-55 / CP68-45 / CP56-30 |
| Capacity | 240㎥/h , 180㎥/h , 120㎥/h , 60㎥/h |
| Power (Kw) | 2x55 / 55 / 45 / 30 |
| Flow (m3/h) | 2x240 / 240 / 200 / 180 |
| Lift (m)/(ft) | 36/118 , 33/108 , 28/92 |
| Pressure (Mpa) | 0.25~0.40 |
| Inlet Pipe (mm)/(in) | DN150/6 |
| Nozzle Caliber | Φ50/2 , Φ40/1 1/2 , Φ35/1 3/8 |
| Hopper Dimension (mm)/(in) | Φ700*Φ150 / Φ28*Φ6 |
| Burden Speed (kg/min)/(lbs/min) | ≤100/220 , ≤80/176.4 , ≤35/132.3 |
| Density (g/m3)/(Ib/gal) | ≤2.8/23.4 , ≤2.4/20 , ≤2.0/16.7 |
| Viscosity | ≤120s / ≤80s |
| Weight (kg) | 3000 / 1800 / 1400 / 1280 |
| External dimension | 2650x2400x1150 , 2200x1700x1200 , 2130x1650x1150 , 2000x1650x1100 |
| Voltage | 380V/460V or customized |
Field of use
Jet mud mixers are widely used in drilling waste management, oil and gas drilling, trenchless HDD and tunnel construction, oil and mud separation, bored piling, water drilling, oil mud dehydration system, coal bed gas solid phase control system and other industries.
Pic Show
Pangolin (China) Construction Machinery Co., Ltd. is a drill manufacturer with complete testing equipment and strong technical force. Our products have a wide range, high quality, reasonable price, and timely delivery, which are widely used in oilfields, drilling, non-excavation fields and other industries. Our products are widely recognized and trusted by users, and can meet the ever-changing economic and social needs. To
We welcome new and old customers from all walks of life to contact us for future business relations and mutual success!
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
4. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.
5. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
