| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | Pangolin |
| Price: | Negotiable |
| Packaging Details: | According to customer needs |
| Delivery Time: | 5-15work days |
| Payment Terms: | T/T |
| Model: | CSJ-FN-120C | Capacity (m3/h): | 120 |
|---|---|---|---|
| Slurry Pump Power (Kw): | 22 | Slurry Pump Pressure (MPa): | 1.0~2.0 |
| Shale Shaker Power(Kw): | 3 | Shale Shaker Vibration Force(KN): | 60 |
| Screen Size (mm): | 1900X1000 | Cone Number: | 12 |
| Separation Size (μm): | 10-30 | Total Power (KW): | 25 |
| System Max.Size(mm): | 2170X2000X2400 | System Weight (Kg): | 2500 |
| High Light: | Mud Circulation System 120m3/H,Oilfield Drilling Equipment 120m3/H,Oilfield Drilling Equipment Solid Control |
||

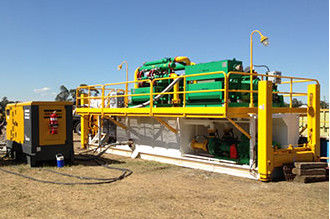

Oilfild Drilling Equipment Solid Control HDD Mud Circulation System
Introduction
Pangolin Drilling Tools Co., Ltd. can produce 30-200 square meters of trenchless horizontal directional crossing engineering mud recovery system, at present, has been applied in Thailand, India, Malaysia and other countries and regions trenchless projects. HK Energy can design and manufacture mud recovery systems (mud cycle systems) with different processing volumes and specifications according to the customer's trenchless drilling rig tonnage, mud pump flow and customer needs
Shale Shake is the first stage of solids control equipment in drilling purification system. It can remove cuttings above 75um brought from the drilling well an d the liquid with smaller particles will flow into tanks, then the fluids will flow into next grade solids control equipment to be treated.
High vibration intensity.
Strong handlingcapacity.
Can adjust the sieve bed angle no need stop running.
Simple and compact structure.
Excellent performance and reliable.
Long life of screen and motor.
Product parameters
| Model | CSJ-FN-30C | CSJ-FN-60C | CSJ-FN-120C | CSJ-FN-200C | |
| Capacity (m3/h) | 30 | 60 | 120 | 200 | |
| Slurry pump | Model | DC-EHM-1.5C | DC-EHM-3C | DC-EHM-3C | DC-EHM-4C |
| Power (Kw) | 7.5 | 11 | 22 | 37 | |
| Pressure (MPa) | 1.0~2.0 | ||||
| Shale shaker | Power(Kw) | 1.5 | 2 | 3 | 3 |
| Vibration force(KN) | 30 | 40 | 60 | 60 | |
|
Screen |
UP | 1400X600 | 1700x700 | 1900X1000 | 2100x1200 |
| Down | 1400X600 | 1700x700 | 1900X1000 | 2100x1200 | |
| Cone Model | FN-100 | FN-150 | |||
| Cone Number | 3 | 6 | 12 | 8 | |
| Separation size (μm) | 10-30 | ||||
| Total Power (KW) | 9 | 13 | 25 | 40 | |
| System Max.Size(mm) | 1650X1450X2150 | 2000X1600X2250 | 2170X2000X2400 | 2400*2300*2400 | |
| System weight (Kg) | 1200 | 1900 | 2500 | 3500 | |
Usage and Applicability
Drilling fluid shale shaker is the primary solids control equipment in the drilling fluid solids control system.
The shale shaker sreens the drilling fluid with great amount cuttings,separates the large-size solid particles ,and sent the drilling fluid to the next seperating equipments.
the Shale Shaker has the advantages of simple structure,reliable performance,large disposal capacity,long service life,and simple maintenance.
Structure and Operating Principle
The shale shaker is composed of feeding tank,base,screening box,and vibrating motor etc.six isolation springs sustain the screening box on the base.three same or different mesh screens are installed on the screening box working surface.
Having absorbed the latest achievements in screening machine at home and abroad and integrated the strong points of circle and rectilinear vibration, the shale shaker greatly raises the speed of carrying drill cuttings and boost through–screen quantity of drilling liquid, thus avoiding pasting on the screen. The shale shaker takes double explosion-proof vibration motors as vibrating source, and forms rectilinear movement by the action of reversal rotation vibration motors. It is especially applicable in the working conditions with stratigraphic fluctuation. Its advantages become more apparent as drilling liquid is of much higher viscosity.
Pic Show
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
3. How about the regular packing?
A: If there is no special packing requirement, we will take it as regular packing. First put them in small cartons, then put large cartons together to make sure the goods are finished.
4. How to check if the product is what you want?
A: If possible, please attach a reference picture so as not to cause any misunderstanding or any links on our website for better understanding.
5. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
6. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.
7. Competitive price:
A: Our factory can supply you the lowest price due to direct sale to customers without distributor!
