| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | Pangolin |
| Price: | Negotiable |
| Packaging Details: | According to customer needs |
| Delivery Time: | 5-15work days |
| Payment Terms: | T/T |
| Vibrating Mode: | Linear Type | Weight: | 1638 Kg |
|---|---|---|---|
| Deck Angle Range: | -1° - 5° | Color: | Customized |
| Motor Power: | 1.94kw*2 | Adjustable G Force: | ≤ 8G |
| High Light: | Linear type Mud Circulation System,Linear Type mud shaker,mud shaker Customized |
||
High Quality Orange HDD Mud Circulation System Shaker For drilling mud
Introduction
Pangolin Drilling Tools Co., Ltd. can produce 30-200 square meters of trenchless horizontal directional crossing engineering mud recovery system, at present, has been applied in Thailand, India, Malaysia and other countries and regions trenchless projects. HK Energy can design and manufacture mud recovery systems (mud cycle systems) with different processing volumes and specifications according to the customer's trenchless drilling rig tonnage, mud pump flow and customer needs
The drilling mud vibrating screen is the first stage of the solids control equipment in the drilling purification system. It can remove the drill cuttings larger than 75μm brought by drilling, so that the liquid with smaller particles is left in the storage tank below, and then flows into the next level of solids control equipment for further processing. At present, it is widely used in mud recovery systems for HDD trenchless, oil and gas drilling, shield tunnels and bored piles.
Product parameters
| Customized | YES |
| Weight | 1638 kg |
| Color | Customized |
| Vibrating Mode | Linear type |
| Motor power | 1.94kw*2 |
| Adjustable G force | ≤ 8G |
| Deck angle range | -1° - 5° |
| Starting mode | Magnetic start |
| L*W*H(mm) | 2761*1998*1428 or Customized |
| Capacity, m3/h | 45, 120, 140 |
| Vibration Motor, KW | 2x0.75, 2x1.72, 2x1.94 |
| Screen Qty, pcs | 2, 3, 4 |
| Screen Size: LxW, mm | 750x900, 700x1250, 585x1165 |
| Screen Area, m2 | 1.35, 2.63, 2.73 |
| Model | CSJ-HJ-30604 | CSJ-HJ-301075 | CSJ-HJ-601555 | CSJ-HJ-1202075 |
| Capacity (m3/h) | 25 | 60 | 120 | |
| Jet pump Power(kw) | 4 | 11 | 22 | |
| Mixing reducer(kw) | 4 | 7.5 | 2X5.5 | 2X7.5 |
| Tank volume (m3) | 6 | 10 | 15 | 20 |
| Size(mm) | 3200X1850X1900 | 3800X2000X2100 | 5300X2000X2500 | 6800X2200X2500 |
Field of use
Linear motion shale shaker are widely used for drilling mud solids control of oil & gas well drilling. In a complete mud recycling system, shale shaker is the first stage equipment for both solids control and mud cleaning. Shale shaker for solids control are devices that remove drill cuttings from the drilling fluid while circulating and drilling. By using different wire mesh screen, linear motion shaker could maximally remove the drilling cuttings and recover the valuable drilling mud back into the mud system for subsequent treatment.

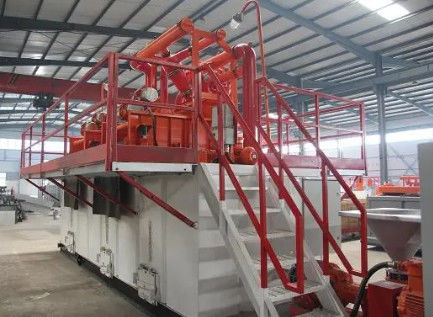

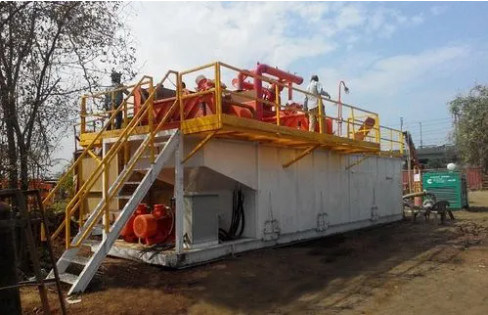

Pic Show
Pangolin (China) Construction Machinery Co., Ltd. is a drill manufacturer with complete testing equipment and strong technical force. Our products have a wide range, high quality, reasonable price, and timely delivery, which are widely used in oilfields, drilling, non-excavation fields and other industries. Our products are widely recognized and trusted by users, and can meet the ever-changing economic and social needs. To
We welcome new and old customers from all walks of life to contact us for future business relations and mutual success!
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
4. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.
5. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
6. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.
7. Competitive price:
A: Our factory can supply you the lowest price due to direct sale to customers without distributor!
