IADC 537 637 Hdd Hole Opener TCI Horizontal Directional Drilling

Basic Information
Place of Origin: HeBei China
Brand Name: Pangolin
Certification: ISO9001
Model Number: 16inches-70inches
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Iron frame + foam
Delivery Time: 5-15work days
Payment Terms: T/T
Detail Information
Rig Type: HDD Rig Model Number: 16inches-70inches
Service Life: 200-300h Size Of Cutters: 10inches-14inches
Material: Hard Alloy Processing Type: Forging
Sealed Form: Metal Seal Cutting Tooth Profile: TCI Tooth
IADC Code: 537 And 637 Shipping Port: Tian Jin Port
High Light:

IADC 637 Hdd Hole Opener


IADC 537 Hdd Hole Opener


TCI Horizontal Directional Drilling

Product Description

Horizontal Directional Drilling HDD Rock HOB Hole Opener



It can be used multiple times, and it is convenient and quick to change the wheel. The roller is divided into three types of A type, B type and C type, and different diameters of reaming can be realized through adjustment.

The unique multi-stage anti-disengagement interlock device prevents the hob from tripping when the drill bit is empty, and prevents the hob shell from falling when the bearing is damaged.
The roll body is inlaid with large-diameter cemented carbide, which has a good rock breaking effect; the bearing has a large diameter and strong impact resistance. Using metal seal, long service life.




The replaceable hob opener is forged from high-quality alloy steel with good weldability. After modulation, the tensile strength is high, which can meet the tensile requirements of large-tonnage drilling rigs. The connection between the wheel body and the valve body is reliable, and the loading and unloading are convenient, and no large-scale special hydraulic equipment is needed. A manual wrench is enough, which is convenient for on-site replacement.



Product parameters



Reamer Size

Hob size and # of Hob Threads
Hob size #of Hobs Hob size # of Hobs




4 1/2IF

5 1/2FH

6 5/8FH







22” 4
26” 5





30” 5 4
34“ 6 5
38“ 7 5
42“ 7 6
46” 8 6
48” 9 7




The specifications of pangolin hob hole openers range from 16" to 70", and are divided into two types: MT knife and welding knife, which are suitable for various compressive strength of the formation. This product is used for the reaming of oil, natural gas, petrochemical, sewage, power and fiber optic pipelines in trenchless horizontal directional drilling.



Used in

The Rock Reamer with replaceable cutter was developed for larger diameter HDD projects where extended life downhole is critical. The larger bearings and cutters dramatically extend the downhole life over smaller, conventional-style cutters. The replaceable cutter sets are available in both TCI and Milled Tooth styles to match your formation. All bit’s bodies have three-eight cutters and can open three different hole sizes.



Pic Show

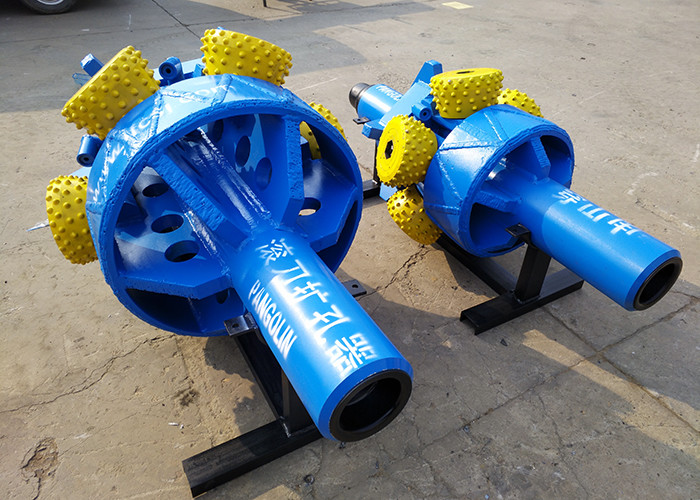

IADC 537 637 Hdd Hole Opener TCI Horizontal Directional Drilling 0

Drill bit hole opener HDD drilling reamer positioning drilling tool 1


Pangolin (China) Construction Machinery Co., Ltd. is a drill manufacturer with complete testing equipment and strong technical force. Our products have a wide range, high quality, reasonable price, and timely delivery, which are widely used in oilfields, drilling, non-excavation fields and other industries. Our products are widely recognized and trusted by users, and can meet the ever-changing economic and social needs. To
We welcome new and old customers from all walks of life to contact us for future business relations and mutual success!


Drill bit hole opener HDD drilling reamer positioning drilling tool 2FAQ


Q: How to order the products?
A: Order directly!


Q: How to control the quality?
A: We should be checking & testing everyone drill bit before shipment.


Q: Do you agree sample order?
A: Yes, we are welcome your sample order to testing our quality.


Q: Can we select the color of the drill bit?
A: Yes, we have the color of bule, golden, silvery for your choose. If you need, we can make the drill bit color based on yours.


Q: Do you have after-sale service and warranty service?
A: Any quality or quantity problem once confirmed, we will be compensate you the same. Any question or problem we will be reply you within 24 hours.
