|Model Number:||16inches-70inches||Size Of Cutters:||10inches-14inches|
|Rig Type:||HDD Rig||Material:||Carbon Steel|
|Processing Type:||Forging||Drilling Depth:||9000m|
Horizontal Drilling Hole Opener,
HOB Rock Reamer,
5 1/2FH Drilling Hole Opener

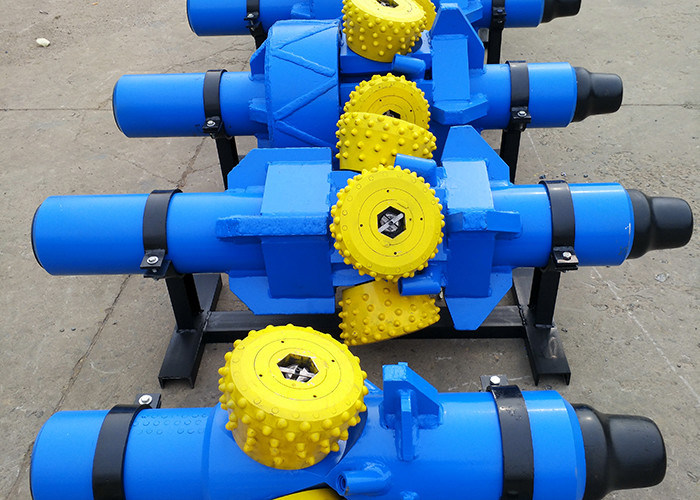

Carbon Steel Horizontal Directional Drilling HOB Rock Reamer
The replaceable hob opener is forged from high-quality alloy steel with good weldability. After modulation, the tensile strength is high, which can meet the tensile requirements of large-tonnage drilling rigs. The connection between the wheel body and the valve body is reliable, easy to install and unload, and does not require large-scale special hydraulic equipment. A manual wrench is sufficient, which facilitates field replacement.
Pangolin hob hole cutting machine specifications 16 "~ 70", divided into MT knife and welding knife two kinds, suitable for all kinds of compressive strength of the formation. This product is used for trenchless horizontal directional drilling and reaming of petroleum, natural gas, petrochemical industry, sewage, electric power and optical fiber pipelines.
Larger bearings and smaller conventional tools significantly extend downhole life. Interchangeable cutter set in TCI and milling tooth style to match your formation. All drills have 3-6 tools and can open 3 holes of different sizes.
|Machine Type||Drilling Equipment|
|Usage||Well Drilling Machinery|
|Rig Type||HDD Rig|
|Size of Cutters||10inches-14inches|
|Hob size and # of Hob||Threads|
|Hob size||#of Hobs||Hob size||# of Hobs|
The hob hole opener is the most effective tool for handling various large-diameter piles in hard rock and gravel strata, and isolated stones. It has unique properties and can greatly reduce the economic benefits of construction costs.
It can be used many times. It is convenient and fast to change wheels. The drum can be divided into three types, type A, Type B and type C, and reaming with different diameters can be realized through adjustment.
The unique multi-stage anti-disengagement interlocking device prevents the hob from tripping when the drill bit is empty, and prevents the hob shell from falling off when the bearing is damaged.
The roller body is inlaid with a large-diameter hard alloy, which has a good rock-breaking effect; the bearing diameter is large, and the impact resistance is strong; the metal seal is used, and the service life is long.
