| Place of Origin: | Hebei China |
|---|---|
| Brand Name: | Pangolin |
| Price: | Negotiable |
| Packaging Details: | According to customer needs |
| Delivery Time: | 5-15work days |
| Payment Terms: | T/T |
| Model: | CSJ-FN-60C | Capacity (m3/h): | 60 |
|---|---|---|---|
| Slurry Pump Power (Kw): | 11 | Slurry Pump Pressure (MPa): | 1.0~2.0 |
| Shale Shaker Power(Kw): | 2 | Shale Shaker Vibration Force(KN): | 40 |
| Screen Size (mm): | 1700x700 | Cone Number: | 6 |
| Separation Size (μm): | 10-30 | Total Power (KW): | 13 |
| System Max.Size(mm): | 2000X1600X2250 | System Weight (Kg): | 1900 |
| High Light: | 1.0Mpa 40KN Mud Recovery System,1.0Mpa 11kw Mud Recovery System,40KN 1.0Mpa Vibrating Screen Machine |
||

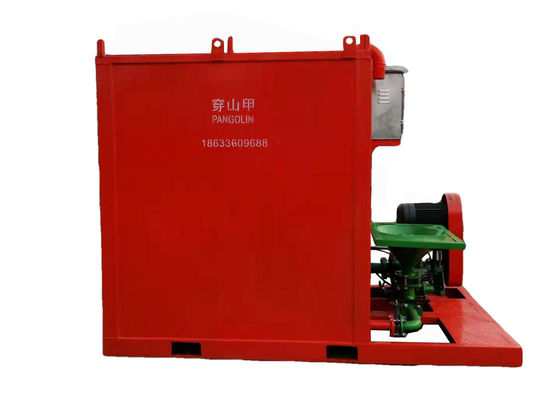

40kn Force 11kw Power HDD Mud Recovery System
Introduction
Can be used with plate-type screen or wavy screen according to the customers requirements,for different drilling conditions.
Easy to change the screens,unsnatching the hook plate by releasing the hook plate bolts and can change the screens rapidly.
Adjusting the screen box angle between -2°~+6° by rotating the control hand wheel in the cases without stop.
Installed with splash baffle, scalable reeled splash cloth,compact structure,and has a good splash effect.
Can be used as single shale shaker or several combined shakers.
Product parameters
| Model | CSJ-FN-30C | CSJ-FN-60C | CSJ-FN-120C | CSJ-FN-200C | |
| Capacity (m3/h) | 30 | 60 | 120 | 200 | |
| Slurry pump | Model | DC-EHM-1.5C | DC-EHM-3C | DC-EHM-3C | DC-EHM-4C |
| Power (Kw) | 7.5 | 11 | 22 | 37 | |
| Pressure (MPa) | 1.0~2.0 | ||||
| Shale shaker | Power(Kw) | 1.5 | 2 | 3 | 3 |
| Vibration force(KN) | 30 | 40 | 60 | 60 | |
|
Screen |
UP | 1400X600 | 1700x700 | 1900X1000 | 2100x1200 |
| Down | 1400X600 | 1700x700 | 1900X1000 | 2100x1200 | |
| Cone Model | FN-100 | FN-150 | |||
| Cone Number | 3 | 6 | 12 | 8 | |
| Separation size (μm) | 10-30 | ||||
| Total Power (KW) | 9 | 13 | 25 | 40 | |
| System Max.Size(mm) | 1650X1450X2150 | 2000X1600X2250 | 2170X2000X2400 | 2400*2300*2400 | |
| System weight (Kg) | 1200 | 1900 | 2500 | 3500 | |
Usage and Applicability
Drilling fluid shale shaker is the primary solids control equipment in the drilling fluid solids control system.
The shale shaker sreens the drilling fluid with great amount cuttings,separates the large-size solid particles ,and sent the drilling fluid to the next seperating equipments.
the Shale Shaker has the advantages of simple structure,reliable performance,large disposal capacity,long service life,and simple maintenance.
Structure and Operating Principle
The shale shaker is composed of feeding tank,base,screening box,and vibrating motor etc.six isolation springs sustain the screening box on the base.three same or different mesh screens are installed on the screening box working surface.
Having absorbed the latest achievements in screening machine at home and abroad and integrated the strong points of circle and rectilinear vibration, the shale shaker greatly raises the speed of carrying drill cuttings and boost through–screen quantity of drilling liquid, thus avoiding pasting on the screen. The shale shaker takes double explosion-proof vibration motors as vibrating source, and forms rectilinear movement by the action of reversal rotation vibration motors. It is especially applicable in the working conditions with stratigraphic fluctuation. Its advantages become more apparent as drilling liquid is of much higher viscosity.
Pic Show
Pangolin (China) Construction Machinery Co., Ltd. is a drill manufacturer with complete testing equipment and strong technical force. Our products have a wide range, high quality, reasonable price, and timely delivery, which are widely used in oilfields, drilling, non-excavation fields and other industries. Our products are widely recognized and trusted by users, and can meet the ever-changing economic and social needs. To
We welcome new and old customers from all walks of life to contact us for future business relations and mutual success!
