|Place of Origin:||Hebei, China|
|Minimum Order Quantity:||1 piece|
|Packaging Details:||Wooden box, iron bracket|
|Delivery Time:||15 days -30 days.|
|Payment Terms:||T/T, L/C|
|Supply Ability:||The construction period of a HHD reamer is 5-7 days|
|Name::||HDD Drilling Tools||Types Of::||Drill|
|Brand Name::||Pangolin||Machine Type::||Drilling Equipment|
|Use::||Drilling||Bearing Type::||Metal Sealed Bearings|

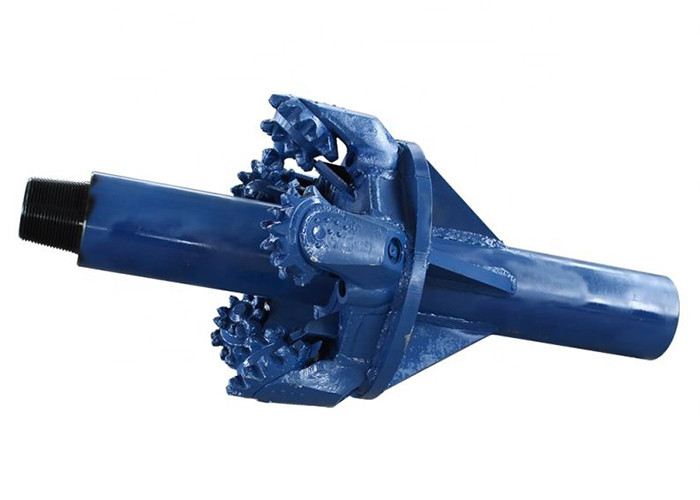

Low price directional drilling bit HDD hole opener Rock reamer
The changeable gear rock drill is suitable for large-diameter non-excavation construction of large-diameter non-excavation pipeline laying by large-scale drilling rigs. It is suitable for a variety of rock formations. The reaming diameter can reach Φ300-2200mm.
The wheel body is reliable in connection with the wheel body, and it is convenient to disassemble, without large-scale special hydraulic equipment, and the wheel body can be easily replaced by a manual wrench.
The same body can be reused, and wheels of different specifications can also be installed. Under normal circumstances, four wheels of different sizes can be replaced, and one body can be used for four-size hole construction, which greatly saves construction costs.
1. Cutting structure.
In view of the different characteristics of the cutting action of the blades in different areas on the cone, the tapered blades are placed in the permanent contact area, and the wedge-shaped blades are placed in the alternate contact area, which greatly improves the drilling efficiency. By arranging the diamond blade in the permanent contact area of the cone where the blade is severely worn, the wear resistance of the cutting structure is enhanced. The tungsten carbide blade is placed on the top surface of the cone to protect the cone from abrasion.
2. Instrument structure.
The drill bit adopts active cutting volume protection insert, which has good gauge protection and drilling ability.
3. Bearing structure.
High-precision journal bearings. The ball locks the cone. The hard surface hears the bearing surface. The tapered bearing is inlaid with anti-friction alloy. Improve the wear resistance and seizure resistance of the bearing. Compared with the tri-cone bit, the outrigger bearing is larger, so higher WOB and higher reliability can be obtained.
4. Hydraulic design.
The small-angle waterway design increases the thickness of the tip of the palm and effectively prevents the waterway from scouring. The optimized hydraulic structure improves the cleaning ability and the mechanical drilling speed.
5. Product application.
Suitable for sidetracking, deep well drilling and old wells.
|Product name:||HDD Drilling Tools|
|Application:||HDD project, drilling|
|Bearing type:||Metal sealed bearings|
|Available sizes:||6" (152.4mm)~78" (1981.2mm)|
1. Suitable for medium to medium hard formations with high fragmentation resistance (hard shale, sandstone, etc.)
2. The drill bearing is a non-sealed roller bearing.
3. The tip of the palm is welded with hard surface, and the carbide blade protection gauge is pressed into the head OD.
4. The surface of the cone gauge is reinforced with cemented carbide press blocks.
Pangolin (China) Construction Machinery Co., Ltd. is a drill manufacturer with complete testing equipment and strong technical force. Our products have a wide range, high quality, reasonable price, and timely delivery, which are widely used in oilfields, drilling, non-excavation fields and other industries. Our products are widely recognized and trusted by users, and can meet the ever-changing economic and social needs. To
We welcome new and old customers from all walks of life to contact us for future business relations and mutual success!
1. What is the quality of the drill bit?
A: We have many series of rock drill bits with different quality grades and different prices.
We believe that a suitable tool with a higher cost-effectiveness is the most important. For example, our high-quality rock drill bits are not cost-effective for water well drilling, because water well drilling rigs cannot drive super rock drill bits to their best performance. But for very deep wells, what about high-quality grades? Rock drill bits are cost-effective, even if their prices are much higher. So it’s best to tell us as much as possible about the details of the project, and then we provide suitable solutions and quotations, usually 2 or 3 solutions to choose from.
2. How to send an inquiry?
A: It is best to send us the detailed specifications of the product; it is best to attach some photos for better understanding. If you have no experience in the drilling field, for example, many customers don’t know the IADC code, please feel free to tell us about the applications such as oil/gas/geothermal/HDD/waer/mining, well depth, average rock hardness, and then we will make suggestions and solutions Program.
-Send us an inquiry from the website platform.
-Send email to us directly or talk on Skype or Whatsapp, sales staff are waiting for service anytime during working days, and all inquiries can be answered within 10 hours. (Email, Skype, Whatsapp are below.)
