6 To 78 Inch Rock Pilot Bit Reamer HDD Drilling Tools

Basic Information
Place of Origin: Hebei, China
Brand Name: Pangolin
Certification: iso-9001
Minimum Order Quantity: 1 piece
Price: bargain
Packaging Details: Wooden box, iron bracket
Delivery Time: 15 days -30 days.
Payment Terms: T/T, L/C
Supply Ability: The construction period of a HHD reamer is 5-7 days
Detail Information
Name:: HDD Drilling Tools Types Of:: Drill
Brand Name:: Pangolin Machine Type:: Drilling Equipment
Material:: Carbide Processing Type:: Forging
Use:: Drilling Bearing Type:: Metal Sealed Bearings
High Light:

78Inch Rock Pilot Bit


Rock Pilot Bit Reamer HDD


6 Inch Reamer HDD

Product Description

HDD reamer rock bit and pilot bit, reamer, HDD drilling tool



The hole opener is made of tough heat treated alloy steel for maximum strength. Cutter arms, equipped with removable cutter, are hardfaced and welded on body. Cutters are available in three types: type SM for soft to medium formation, type MH for medium to hard formation and type XH for hard formation. The hole openers have three or six jet tubes with replaceable nozzles, so that jet streams quickly clean the enlarged hole. Our Tungsten carbide insert teeth (TCI ) Steel tooth cone reamers are promptly manufactured, we also custom manufacture reamers according to customers’ special request. The Custom manufactured reamers’ OD are between 220mm to 1600mm. According to the features of drilling machine and different methane condition. We adopt more suitable tooth type, bearing structure, sealing type and angle of inclination of paws. water cutting, good sand returning can effectively reduce sand gathering, cones are made of hot-coating-anti-waring alloy reducing wearing. Unique anti-falling design of cones prevent the accident caused by falling cones which is leaded by bearing damage. Perfect welding process prevents the damage to sealing and bearing system because of over beat. The bit body adopts spiral design with good stabilizing and sand returning performance to improve hole opening speed reducing repeating rock breaking of cones. This type of tooth mainly applied in the methane whose hardness in under 100 MPA-140MP.



1. Suitable for medium to medium hard formations with high compression resistance (hard shale, sand body, etc.)
2. The bit bearing is an unsealed roller bearing.
3. The edge of the shirt is welded and the carbide insert is pressed into the outer diameter of the head.
4. The surface of the cone gauge is strengthened with cemented carbide.


The perfect welding process prevents damage to the seal and bearing system due to over-jumping. The bit body adopts a spiral design, which has good performance of stable sand return, improves the opening speed, and reduces the repeated rock breaking by the cone.


Product name: HDD Drilling Tools
Origin: Hebei china
Material: Carbide
Use: Drilling
Application: HDD project, drilling
Bearing type: Metal sealed bearings
Available sizes: 6" (152.4mm)~78" (1981.2mm)
Processing type: Forging


1. Please select the applicable formula and parameters according to the instructions.
2. Carefully check the appearance of the drill bit, check the thread end face of the drill bit, whether there is the serial number on the packing box and the certificate.
3. The bottom hole must be clean, and the drill bit cannot be used for long reaming.
4. The drilling process must run smoothly, and if any abnormal jump is found, timely analysis and effective measures should be taken
5. The drill bit should be stored in a dry, well-ventilated room with a temperature of 10-33℃, and avoid sun and rain. Stored under these conditions, the quality of the drill bit is guaranteed for 4 years.

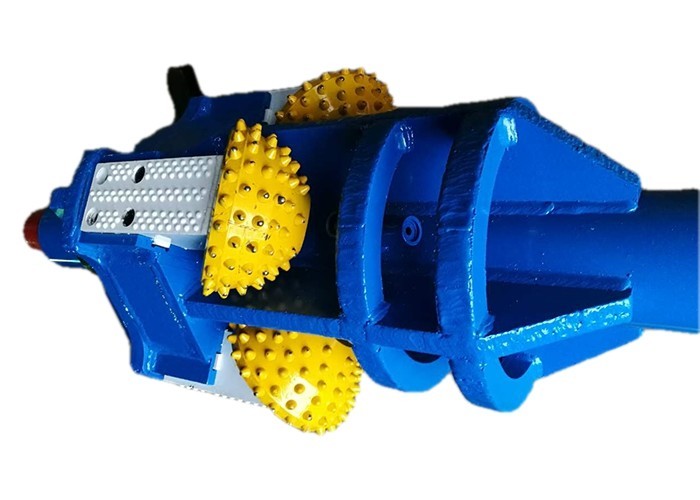

6 To 78 Inch Rock Pilot Bit Reamer HDD Drilling Tools 0



6 To 78 Inch Rock Pilot Bit Reamer HDD Drilling Tools 1


Pangolin (China) Construction Machinery Co., Ltd. is a drill manufacturer with complete testing equipment and strong technical force. Our products have a wide range, high quality, reasonable price, and timely delivery, which are widely used in oilfields, drilling, non-excavation fields and other industries. Our products are widely recognized and trusted by users, and can meet the ever-changing economic and social needs. To
We welcome new and old customers from all walks of life to contact us for future business relations and mutual success!


6 To 78 Inch Rock Pilot Bit Reamer HDD Drilling Tools 2


1. What is the quality of the drill bit?
A: We have many series of rock drill bits with different quality grades and different prices.
We believe that a suitable tool with a higher cost-effectiveness is the most important. For example, our high-quality rock drill bits are not cost-effective for water well drilling, because water well drilling rigs cannot drive super rock drill bits to their best performance. But for very deep wells, what about high-quality grades? Rock drill bits are cost-effective, even if their prices are much higher. So it’s best to tell us as much as possible about the details of the project, and then we provide suitable solutions and quotations, usually 2 or 3 solutions to choose from.
2. How to send an inquiry?
A: It is best to send us the detailed specifications of the product; it is best to attach some photos for better understanding. If you have no experience in the drilling field, for example, many customers don’t know the IADC code, please feel free to tell us about the applications such as oil/gas/geothermal/HDD/waer/mining, well depth, average rock hardness, and then we will make suggestions and solutions Program.
-Send us an inquiry from the website platform.
-Send email to us directly or talk on Skype or Whatsapp, sales staff are waiting for service anytime during working days, and all inquiries can be answered within 10 hours. (Email, Skype, Whatsapp are below.)
