Horizontal drilling equipment HDD drilling tools for groundwater

Basic Information
Place of Origin: Hebei, China
Brand Name: Pangolin
Certification: iso-9001
Minimum Order Quantity: 1 piece
Price: bargain
Packaging Details: Wooden box, iron bracket
Delivery Time: 15 days -30 days.
Payment Terms: T/T, L/C
Supply Ability: The construction period of a HHD reamer is 5-7 days
Detail Information
Name:: HDD Drilling Tools Types Of:: Drill
Brand Name:: Pangolin Machine Type:: Drilling Equipment
Material:: Carbide Processing Type:: Forging
Use:: Drilling Bearing Type:: Metal Sealed Bearings

Product Description

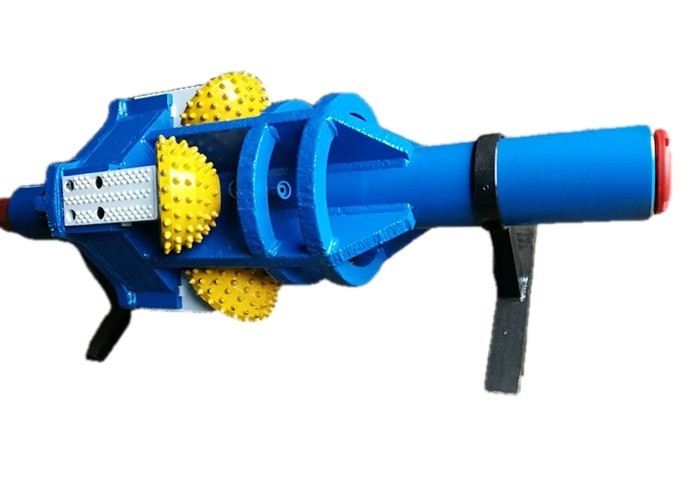

Horizontal drilling equipment HDD drilling tools for groundwater




1.Cutting structure
In view of the different cutting characteristics of the inserts in different parts of the cone, the cone inserts are placed in the permanent contact area, and the wedge inserts are placed in the alternating contact area, which greatly improves the drilling efficiency. The diamond insert is provided in the permanent contact area of the cone to improve the wear resistance of the cutting structure, and the insert is worn seriously in this area. Place tungsten carbide inserts on the top surface of the cone to protect the cone from abrasion.
2. Table structure
The cutting body is provided with active cutting protection inserts, so that the drill bit has good cutting protection and drilling ability.
3. Bearing structure
High-precision journal bearings. The ball locks the cone. Hard surface bearing surface. Tapered bearings with friction-reducing alloys. Improve the wear resistance and bite of the bearing. Compared with the tri-cone bit, the leg bearing of the tri-cone bit is larger, which can withstand higher drilling weight and higher reliability.
4. Hydraulic design
The small-angle waterway design increases the thickness of the shirt hem, which can effectively prevent waterway erosion. Adopt optirized waterics structure, improve the cleaning ability and ROP.


product structure:

Formation:suttable for sand and medium to very hard soil
Structure:steel casting,welded
Connection with drill rod:
1.octagonal connection
2.Direct connection with drill rod
3.Connection with laid pipe:within or without swivel


The perfect welding process prevents damage to the seal and bearing system due to over-jumping. The bit body adopts a spiral design, which has good performance of stable sand return, improves the opening speed, and reduces the repeated rock breaking by the cone.


Product name: HDD Drilling Tools
Origin: Hebei china
Material: Carbide
Use: Drilling
Application: HDD project, drilling
Bearing type: Metal sealed bearings
Available sizes: 6" (152.4mm)~78" (1981.2mm)
Processing type: Forging


Our service:

We ship to many countries and serve industries such as Oil & Gas, water well , Construction,Mining,
Horizontal Directional Drilling (HDD), Geothermal and Environmental. Our experienced staff is here to
assist you with everything from choosing the right bit to shipping around the globe.
Our goal is to provide our customers with the best quality tools, accessories and service in the industry.
We are supported by many years of experience, trained professionals and a full machine shop. Reducethe cost ,Speed the drilling,Guarantee the safety is always our aim.


Horizontal drilling equipment HDD drilling tools for groundwater 0


Horizontal drilling equipment HDD drilling tools for groundwater 1


Pangolin (China) Construction Machinery Co., Ltd. is a drill manufacturer with complete testing equipment and strong technical force. Our products have a wide range, high quality, reasonable price, and timely delivery, which are widely used in oilfields, drilling, non-excavation fields and other industries. Our products are widely recognized and trusted by users, and can meet the ever-changing economic and social needs. To
We welcome new and old customers from all walks of life to contact us for future business relations and mutual success!


Horizontal drilling equipment HDD drilling tools for groundwater 2


1. What is the quality of the drill bit?
A: We have many series of rock drill bits with different quality grades and different prices.
We believe that a suitable tool with a higher cost-effectiveness is the most important. For example, our high-quality rock drill bits are not cost-effective for water well drilling, because water well drilling rigs cannot drive super rock drill bits to their best performance. But for very deep wells, what about high-quality grades? Rock drill bits are cost-effective, even if their prices are much higher. So it’s best to tell us as much as possible about the details of the project, and then we provide suitable solutions and quotations, usually 2 or 3 solutions to choose from.
2. How to send an inquiry?
A: It is best to send us the detailed specifications of the product; it is best to attach some photos for better understanding. If you have no experience in the drilling field, for example, many customers don’t know the IADC code, please feel free to tell us about the applications such as oil/gas/geothermal/HDD/waer/mining, well depth, average rock hardness, and then we will make suggestions and solutions Program.
-Send us an inquiry from the website platform.
-Send email to us directly or talk on Skype or Whatsapp, sales staff are waiting for service anytime during working days, and all inquiries can be answered within 10 hours. (Email, Skype, Whatsapp are below.)
