| Place of Origin: | HeBei China |
|---|---|
| Brand Name: | Pangolin |
| Price: | Negotiation |
| Packaging Details: | According to customer needs |
| Delivery Time: | 5-15 work day |
| Payment Terms: | T/T |
| Name: | HDD Hole Opener | Applicable Industries: | Construction Works , Energy & Mining |
|---|---|---|---|
| Use: | Well Drilling | Color: | Customer's Requirement |
| Weight: | 200kg-400kg | Machine Type: | Drilling Equipment |
| Usage: | Hole Drilling | Application Formation: | Sandstone And Limestone |
| High Light: | 48Inch HDD Cone Reamer,Limestone Cone Reamer,Cone Reamer Rock Drilling Tools |
||
High quality rock drilling tools reamer drill cone reamer hdd drilling tool
Introduction:
The hole opener is made of tough heat-treated alloy steel for maximum strength. The knife arm is equipped with a detachable knife, the surface is hardened and welded to the body. There are three types of cutters: SM type is used for soft to medium formations, MH type is used for medium to hard formations, and XH type is used for hard formations.
Features:
1. Suitable for medium to medium hard formations with high compression resistance (hard shale, sand body, etc.)
2. The bit bearing is an unsealed roller bearing.
3. The edge of the shirt is welded and the carbide insert is pressed into the outer diameter of the head.
4. The surface of the cone gauge is strengthened with cemented carbide.
Product parameters:
| Product name | HDD hole opener |
| Usage | horizontal directional drilling |
| Application formation | medium hard with relatively higher compressive strength and hard stringers, such as hard shale, sandstone and limestone, etc. |
| Weight | 200kg-400kg |
| MOQ | 1 |
|
Reamer Size |
Cone size and # of Cones | Threads | |||
| Cone size | #of Cones | Cone size | # of Cones | ||
| 10“ | 6 1/2” | 3 | NC23 NC26(2 3/8IF) D50 D80 NC31(2 7/8IF) NC38(3 1/2IF) | ||
| 12“ | 8 1/2” | 3 | |||
| 16“ |
8 1/2”or 9 1/2” |
4 |
For 8 1/2”-9 1/2” Cone: NC23 NC26(2 3/8”IF) D50 D80 NC31(2 7/8”IF) NC38(3 1/2”IF)
For 12 1/4”-13 5/8” Cone: 4”IF 4 1/2IF 5 1/2FH 6 5/8FH |
||
| 18”-20“ | 5 | 12 1/4” | 4 | ||
| 22”-24“ | 6 |
12 1/4” or 13 5/8” |
5 | ||
| 28”-30” | 7 | 6 | |||
| 32”-34” | 8 | 7 | |||
| 36“-38” | 9 | 8 | |||
| 40“-42” | 10 | 9 | |||
| 44“-46” | 11 | 10 | |||
| 48”-50” | 12-13 | 11 | |||

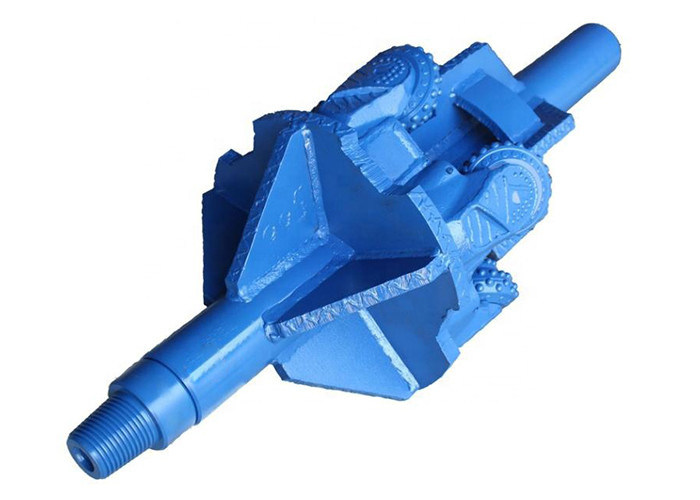

Pic Show
Pangolin (China) Construction Machinery Co., Ltd. is a drill manufacturer with complete testing equipment and strong technical force. Our products have a wide range, high quality, reasonable price, and timely delivery, which are widely used in oilfields, drilling, non-excavation fields and other industries. Our products are widely recognized and trusted by users, and can meet the ever-changing economic and social needs. To
We welcome new and old customers from all walks of life to contact us for future business relations and mutual success!
FAQ
Q: How to order the products?
A: Order directly!
Q: How to control the quality?
A: We should be checking & testing everyone drill bit before shipment.
Q: Do you agree sample order?
A: Yes, we are welcome your sample order to testing our quality.
Q: Can we select the color of the drill bit?
A: Yes, we have the color of bule, golden, silvery for your choose. If you need, we can make the drill bit color based on yours.
Q: Do you have after-sale service and warranty service?
A: Any quality or quantity problem once confirmed, we will be compensate you the same. Any question or problem we will be reply you within 24 hours.
