|Structure:||Horizontal||Thread Connection:||6 5/8 Reg Pin & Box|
|Processing Type:||Casting||Cutter Quantity:||5 Pcs Or 6 Pcs|
|Weight:||5kg~810kg||Suitable Formations:||Soft, Medium Soft, Hard, Medium Hard, Very Hard|
TCI Roller Hole Opener,
Geological Tricone Roller Bit,
Tricone Hole Opener Drilling

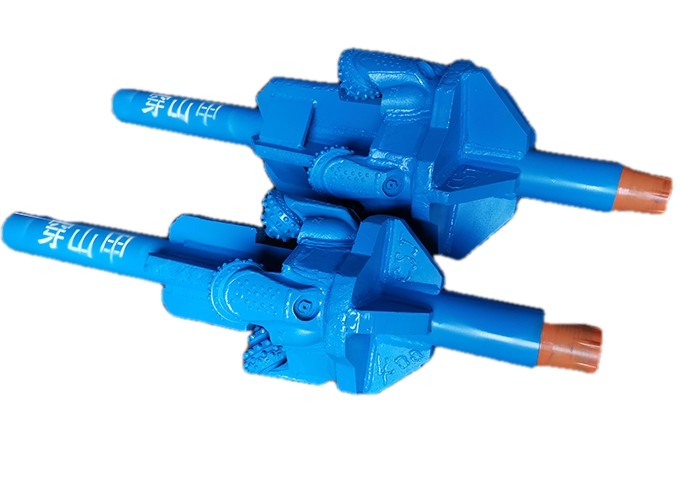

Geological Drilling Trenchless TCI Roller Cone Hole Opener
The taper hole opener is suitable for oil drilling and geological drilling. The tapered roller hole opener has the effect of impacting, crushing and shearing the formation rock when rotating. Therefore, the tapered hole opener can adapt to soft, medium and hard formations. Especially after the emergence of jet cone drills and long nozzle cone drills, the drilling speed of roller cone drills has been greatly increased. This is a major revolution in the development history of cone openers.
1. Suitable for medium to medium hard formations with high compression resistance (hard shale, sand body, etc.)
2. The bit bearing is an unsealed roller bearing.
3. The edge of the shirt is welded and the carbide insert is pressed into the outer diameter of the head.
4. The surface of the cone gauge is strengthened with cemented carbide.
|Model||36" inch 915mm|
|Total Length||1500 mm|
|Thread Connection||6 5/8 Reg Pin & Box|
|Suitable Formations||Soft, Medium Soft, Hard, Medium Hard, Very Hard|
|cutter quantity||5 pcs or 6 pcs|
|Cone size and # of Cones||Threads|
|Cone size||#of Cones||Cone size||# of Cones|
|10“||6 1/2”||3||NC23 NC26(2 3/8IF) D50 D80 NC31(2 7/8IF) NC38(3 1/2IF)|
8 1/2”or 9 1/2”
For 8 1/2”-9 1/2” Cone:
NC23 NC26(2 3/8”IF) D50 D80 NC31(2 7/8”IF) NC38(3 1/2”IF)
For 12 1/4”-13 5/8” Cone:
4”IF 4 1/2IF 5 1/2FH 6 5/8FH
12 1/4” or 13 5/8”
Drilling, exploration, petroleum, drill bits, drilling accessories.
Cone hole opener is the most widely widely apply to oil drilling and geological drilling.
1. Adopt floating load-bearing structure, floating elements are made of new materials with high strength, high elasticity, high temperature resistance and high wear resistance, and the surface is treated with solid lubricant.
2. New grease resistant to high temperature and wear at 250℃.
3. The steel ball locks the cone to adapt to high speed.
4. The saw blade adopts high-strength, high-toughness carbide teeth, which gives full play to the high wear resistance and excellent cutting performance of the saw blade, and extends the life of the cutting teeth of the drill.
5. Adopt high precision metal seal.
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
4. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.
5. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
6. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.
7. Competitive price:
A: Our factory can supply you the lowest price due to direct sale to customers without distributor!
