| Place of Origin: | HeBei China |
|---|---|
| Brand Name: | Pangolin |
| Price: | Negotiable |
| Packaging Details: | According to customer needs |
| Delivery Time: | 5-15work days |
| Payment Terms: | T/T |
| Material: | High Manganese Steel | Color: | Blue, Red, Green Or Customized |
|---|---|---|---|
| Bit Size: | 1050mm | Thread: | D36 |
| Weight: | 500kgs | Processing Type: | Forging |
| High Light: | Oilfield downhole mud motors,HDD downhole mud motors Manganese Steel,Oilfield Manganese Steel HDD Mud Motor |
||
High Manganese Steel Oilfield HDD Drilling Mud Motor
Introduction
The downhole motor is a downhole dynamic drilling tool powered by drilling fluid. The mud flow enters the motor through the bypass valve from the outlet of the mud pump. These fluids produce pressure loss at the inlet and outlet of the pump, drive the rotor to rotate, and transmit torque and speed to the drill bit. The performance of the downhole motor mainly depends on its performance parameters.
Product parameters
| Weight | 500kgs |
| Bend | Accoridng Customer Drill Requirement |
| Type | Reamer |
| Machine Type | Drilling Tool |
| Material | High Manganese Steel |
| Processing Type | Forging |
| Use | HDD drilling, hole opener |
| Sealed Type | Rubber sealed |
| Color | Blue, red, green or Customized |
| Thread | D36 |
| Bit Size | 1050mm |
| Model | 5LZ95x7.0L-5-600 | 5LZ120x7.0-5-864 | 5LZ165x7.0-5-840 | 5LZ172x7.0-5-840 | 5LZ203x7.0 -5-840 |
| ToolOD mm in |
95 3 3/4 | 120 4 3/4 | 165 6 1/2 | 172 6 3/4 | 203 8 |
| Connecting Thread up down |
3 1/2REG 2 7/8IF Pin | 3 1/2REG 3 1/2IF Pin | 4 1/2REG 4 1/2IF Pin | 6 5/8REG 5 1/2FH pin | 6 5/8REG 6 5/8FH |
| LOBE | 5:06 | 5:06 | 5:06 | 5:06 | 5:06 |
| Stage | 5 | 5 | 5 | 5 | 5 |
| Flow Rate lpm gpm | 320-800 85-211 | 650-1300 171-342 | 862-1724 228-456 | 947-1894 250-500 | 1113-2225 295-588 |
| Rotory peed rpm | 124-300 | 140-280 | 87-174 | 78-154 | 79-158 |
| Output Torque N.m lb-ft |
1388 1025 | 2344 1730 | 4590 3386 | 5200 3835 | 6277 4629 |
| Max Torque N.m lb-ft |
1962 1477 | 3312 2443 | 6484 4783 | 7345 5417 | 8866 6540 |
| output power KW hb |
53 72 | 87 117 | 100 135 | 118 159 | 130 176 |
Used in
According to the actual needs of drilling, we have introduced high, medium and low speed downhole motors, with various models and functional configurations, suitable for various working conditions.
1. Standard standard motor, drive shaft with grease, straight, single-bend and double-bend.
2. The torque of the long shaft is increased by 30%-60% compared with the standard shaft. The slurry-lubricated drive shaft is straight, single-bend and double-bend.
3. The high flow type uses hollow rotors and different sizes of cemented carbide nozzles to increase the feed flow and drill power.

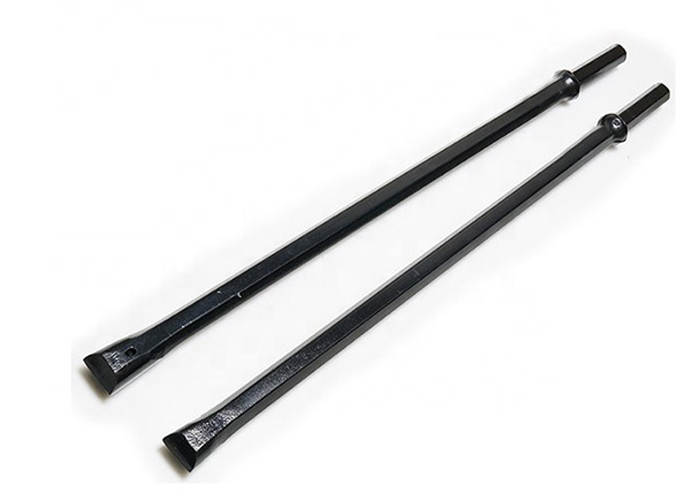

Pic Show
Pangolin (China) Construction Machinery Co., Ltd. is a drill manufacturer with complete testing equipment and strong technical force. Our products have a wide range, high quality, reasonable price, and timely delivery, which are widely used in oilfields, drilling, non-excavation fields and other industries. Our products are widely recognized and trusted by users, and can meet the ever-changing economic and social needs. To
We welcome new and old customers from all walks of life to contact us for future business relations and mutual success!
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
4. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.
