20m3 22kw Linear Mud Rehabilitation System Shale Shaker Antiwear Material

Basic Information
Place of Origin: Hebei China
Brand Name: Pangolin
Price: Negotiable
Packaging Details: According to customer needs
Delivery Time: 5-15work days
Payment Terms: T/T
Detail Information
Deck Angle Range: -1° - 5° Vibration Motor, KW: 2x0.75, 2x1.72, 2x1.94
Screen Qty, Pcs: 2, 3, 4 L*W*H(mm): 2761*1998*1428 Or Customized
Screen Size: LxW, Mm: 750x900, 700x1250, 585x1165 Weight: 1638 Kg
High Light:

Oilfield Shale Shaker Anti Abrasive


20m3 Vibrating Screen Machine 22kw


20m3 22kw Vibrating Screen Machine

Product Description

20m3 22kw Linear Mud Rehabilitation System Shale Shaker Antiwear Material​


The vibrating screen has simple structure, reliable performance, large disposal capacity, long service life and simple maintenance. With high vibration intensity, adjustable pitch, compact structure, reliable performance and high cost performance, it is a competitive product in the international market.


Shale vibrating screen is the first phase solids control equipment in the drilling fluid processing system, also known as the key solids control equipment in the drilling fluid system, which determines the performance of the entire solids control system. In addition to a single vibrating screen, a single skid tandem vibrating screen, a single skid triple vibrating screen, a union vibrating screen and a mud distributor can also be provided according to customer requirements.


Product parameters


Weight 1638 kg
Color Customized
Vibrating Mode Linear type
Motor power 1.94kw*2
Adjustable G force ≤ 8G
Deck angle range -1° - 5°
Starting mode Magnetic start
L*W*H(mm) 2761*1998*1428 or Customized
Capacity, m3/h 45, 120, 140
Vibration Motor, KW 2x0.75, 2x1.72, 2x1.94
Screen Qty, pcs 2, 3, 4
Screen Size: LxW, mm 750x900, 700x1250, 585x1165
Screen Area, m2 1.35, 2.63, 2.73
Customized YES


Model CSJ-HJ-30604 CSJ-HJ-301075 CSJ-HJ-601555 CSJ-HJ-1202075
Capacity (m3/h) 25 60 120
Jet pump Power(kw) 4 11 22
Mixing reducer(kw) 4 7.5 2X5.5 2X7.5
Tank volume (m3) 6 10 15 20
Size(mm) 3200X1850X1900 3800X2000X2100 5300X2000X2500 6800X2200X2500


Field of use
Linear motion vibrating screen is widely used in the solid phase control of oil and gas drilling mud. In a complete mud recovery system, the vibrating screen is the first-level equipment for solids control and mud cleaning. The shale shaker used for solids control is a device that removes drill cuttings from the drilling fluid during circulation and drilling. By using different screen screens, linear shakers maximize cuttings removal and retrieve valuable drilling fluid into the mud system for subsequent processing.


Pic Show

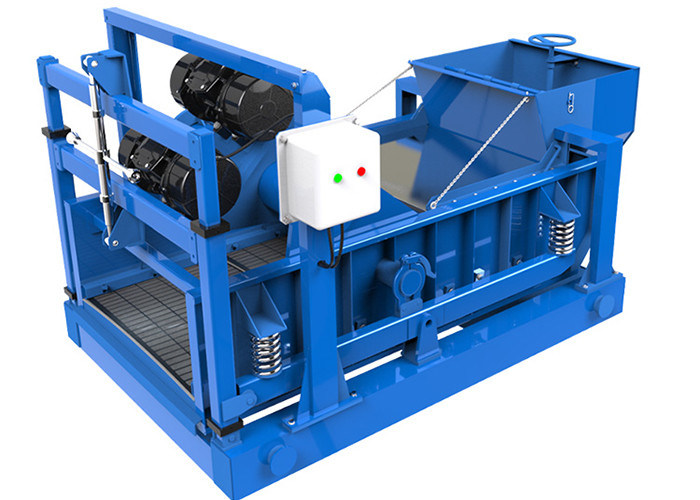

20m3 22kw Linear Mud Rehabilitation System Shale Shaker Antiwear Material 0
