200 M3/ H HDD Mud Circulation System 8 Cone 40 KW High Power Mud Shale Shaker

Basic Information
Place of Origin: Hebei China
Brand Name: Pangolin
Certification: iso-9001
Model Number: CSJ-FN-200C
Price: Negotiable
Packaging Details: According to customer needs
Delivery Time: 5-15work days
Payment Terms: T/T
Detail Information
Model: CSJ-FN-120C Capacity (m3/h): 120
Slurry Pump Power (Kw): 22 Slurry Pump Pressure (MPa): 1.0~2.0
Shale Shaker Power(Kw): 3 Shale Shaker Vibration Force(KN): 60
Screen Size (mm): 1900X1000 Cone Number: 12
Separation Size (μm): 10-30 Total Power (KW): 25
System Max.Size(mm): 2170X2000X2400 System Weight (Kg): 2500
High Light:

Trenchless 2.0mpa slurry recycling system


12 cones mud recycling system 2.0mpa


12 cones Trenchless slurry recycling system

Product Description

200m ³/ H HDD mud circulating system 8-cone 40 kW high-power mud circulating system



In a complete mud recycling system, shale shaker is the first stage equipment for both solids control and mud cleaning. Shale shaker for solids control are devices that remove drill cuttings from the drilling fluid while circulating and drilling. By using different wire mesh screen, linear motion shaker could maximally remove the drilling cuttings and recover the valuable drilling mud back into the mud system for subsequent treatment.

Product parameters


Model CSJ-FN-30C CSJ-FN-60C CSJ-FN-120C CSJ-FN-200C
Capacity (m3/h) 30 60 120 200
Slurry pump Model DC-EHM-1.5C DC-EHM-3C DC-EHM-3C DC-EHM-4C
Power (Kw) 7.5 11 22 37
Pressure (MPa) 1.0~2.0
Shale shaker Power(Kw) 1.5 2 3 3
Vibration force(KN) 30 40 60 60

size (mm)

UP 1400X600 1700x700 1900X1000 2100x1200
Down 1400X600 1700x700 1900X1000 2100x1200
Cone Model FN-100 FN-150
Cone Number 3 6 12 8
Separation size (μm) 10-30
Total Power (KW) 9 13 25 40
System Max.Size(mm) 1650X1450X2150 2000X1600X2250 2170X2000X2400 2400*2300*2400
System weight (Kg) 1200 1900 2500 3500


Usage and Applicability

Drilling fluid shale shaker is the primary solids control equipment in the drilling fluid solids control system.

The shale shaker sreens the drilling fluid with great amount cuttings,separates the large-size solid particles ,and sent the drilling fluid to the next seperating equipments.

the Shale Shaker has the advantages of simple structure,reliable performance,large disposal capacity,long service life,and simple maintenance.


Structure and Operating Principle

The shale shaker is composed of feeding tank,base,screening box,and vibrating motor etc.six isolation springs sustain the screening box on the base.three same or different mesh screens are installed on the screening box working surface.

Having absorbed the latest achievements in screening machine at home and abroad and integrated the strong points of circle and rectilinear vibration, the shale shaker greatly raises the speed of carrying drill cuttings and boost through–screen quantity of drilling liquid, thus avoiding pasting on the screen. The shale shaker takes double explosion-proof vibration motors as vibrating source, and forms rectilinear movement by the action of reversal rotation vibration motors. It is especially applicable in the working conditions with stratigraphic fluctuation. Its advantages become more apparent as drilling liquid is of much higher viscosity.


Pic Show

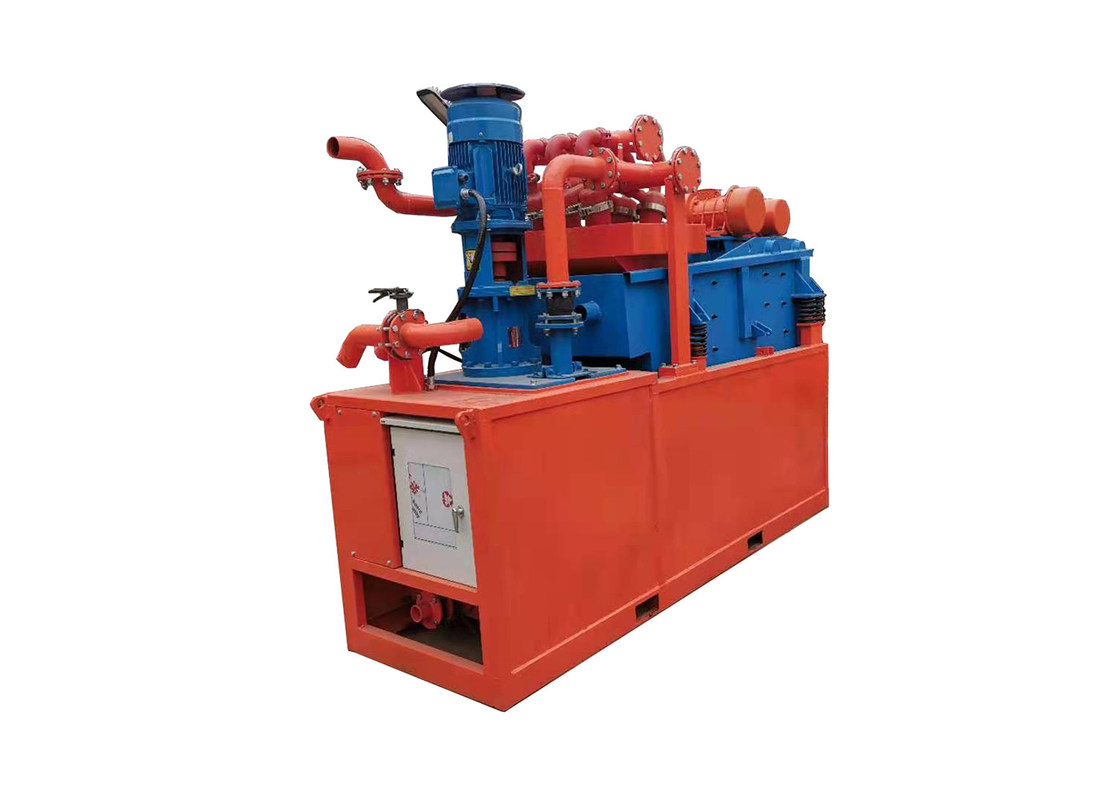

200 M3/ H HDD Mud Circulation System 8 Cone 40 KW High Power Mud Shale Shaker 0


Treatment process of economical mud recovery system
From working machinery (or sedimentation tank) by slurry pump
(1) Sucked mud passes through mud logging tank of shale shaker
(2) Vibrating screen entering mud recovery system(3) The coarse particles in the sewage slurry are screened out, and then enter the slurry storage tank (4),(5) Suck from the tank to remove the mud with certain kinetic energy from the desander along the pipeline(6) The slurry inlet is injected tangentially, and the fine silt is discharged from the drip nozzle at the lower end of the hydrocyclone into the vibrating screen(3) On the upper fine screen of the. After fine screen dehydration and screening, the relatively dry fine slag material is separated, and the slurry passing through the fine screen returns to the slurry storage tank again(4) Inside. But cyclone(6) The treated clean mud enters the intermediate storage tank from the overflow pipe of the cyclone(7) And then transported out along the slurry outlet pipe or returned to the slurry storage tank
(4). During mud circulation, a liquid level buoy between the intermediate storage tank and the slurry storage tank(8) Keep the liquid level in the slurry storage tank constant. Once the amount of mud output from the slurry storage tank is greater than that supplied, the liquid level buoy will fall with the drop of the liquid level.
At this time, the mud in the middle storage tank will be transferred to the slurry storage tank through the open slurry replenishing pipe, and the liquid level will rise and recover to its original state; If the slurry supply is greater than the output, the slurry storage tank will overflow to prevent overflow. When higher quality mud is required, the mud sorting process in the cyclone can be repeated by reducing the total slurry feed.

Drill bit hole opener HDD drilling reamer positioning drilling tool 1


Pangolin (China) Construction Machinery Co., Ltd. is a drill manufacturer with complete testing equipment and strong technical force. Our products have a wide range, high quality, reasonable price, and timely delivery, which are widely used in oilfields, drilling, non-excavation fields and other industries. Our products are widely recognized and trusted by users, and can meet the ever-changing economic and social needs. To
We welcome new and old customers from all walks of life to contact us for future business relations and mutual success!


Drill bit hole opener HDD drilling reamer positioning drilling tool 2



1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.

2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.

3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.

4. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.

5. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.

6. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.

7. Competitive price:
A: Our factory can supply you the lowest price due to direct sale to customers without distributor!
