|Flow (m3/h):||2x240 / 240 / 200 / 180||Lift (m)/(ft):||36/118 , 33/108 , 28/92|
|Power (Kw):||2x55 / 55 / 45 / 30||Capacity:||240㎥/h , 180㎥/h , 120㎥/h , 60㎥/h|
|Voltage:||380V/460V Or Customized||Matching Pump:||2xCP68-55 / CP68-55 / CP68-45 / CP56-30|
|Pressure (Mpa):||0.25~0.40||Inlet Pipe (mm)/(in):||DN150/6|
HDD Jet Mixing Hopper,
240m3/h Jet Mixing Hopper,
0.40mpa mud mixing hopper

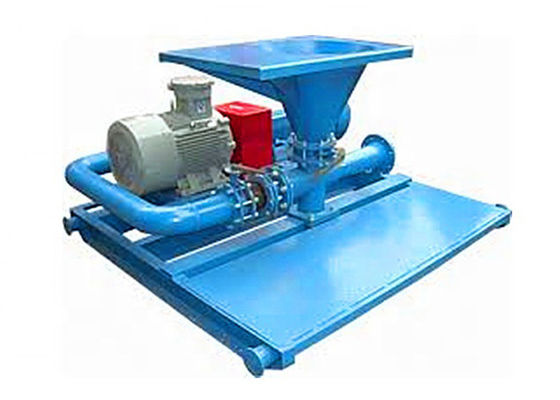

380V Drilling Waste Trenchless HDD Jet Mixing Hopper
Jet Mud Mixer Used In Drilling Waste Management , Oil And Gas Drilling
The drilling fluid flow into the jet pump with certain pressure,in the jet pump fluid spouts out from jet nozzle first, then flows into shear pipe through mixing chamber. Materials will be added from hopper to mixing hopper, and move into shear pipe with the flow. During this process, they are dispersed and mixed. The mixture will enter into drilling fluid tank when flows out of the shear pipe.
The shear pipe is hollow and it can expand gradually based on certain curved surface. It is mainly used to enlarge shearing force inside the pipe to disperse the material further and increase the mixture pressure head, this will make it easy to enter into circulating tank.
Bernoulli effect is adopted in shear pipe which is flow rate is rapid with low pressure, and slow with high pressure. Pressure is low in the chamber when fluid spouts out in high speed from the jet nozzle; when fluid enters into the shear pipe, its section is enlarged and flow rate decreased so the pressure rises.
|Voltage||380V/460V or customized|
|Matching Pump||2xCP68-55 / CP68-55 / CP68-45 / CP56-30|
|Capacity||240㎥/h , 180㎥/h , 120㎥/h , 60㎥/h|
|Power (Kw)||2x55 / 55 / 45 / 30|
|Flow (m3/h)||2x240 / 240 / 200 / 180|
|Lift (m)/(ft)||36/118 , 33/108 , 28/92|
|Inlet Pipe (mm)/(in)||DN150/6|
|Nozzle Caliber||Φ50/2 , Φ40/1 1/2 , Φ35/1 3/8|
|Hopper Dimension (mm)/(in)||Φ700*Φ150 / Φ28*Φ6|
|Burden Speed (kg/min)/(lbs/min)||≤100/220 , ≤80/176.4 , ≤35/132.3|
|Density (g/m3)/(Ib/gal)||≤2.8/23.4 , ≤2.4/20 , ≤2.0/16.7|
|Viscosity||≤120s / ≤80s|
|Weight (kg)||3000 / 1800 / 1400 / 1280|
|External dimension||2650x2400x1150 , 2200x1700x1200 , 2130x1650x1150 , 2000x1650x1100|
Field of use
Jet mud mixer is widely used in these industries: Drilling Waste Management, Oil and Gas Drilling, Trenchless HDD & Tunnelling, Oil Mud Seperation, Bored Piling, Water Drilling, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System.
