|Burden Speed (kg/min)/(lbs/min):||≤100/220 , ≤80/176.4 , ≤35/132.3||Flow (m3/h):||2x240 / 240 / 200 / 180|
|Density (g/m3)/(Ib/gal):||≤2.8/23.4 , ≤2.4/20 , ≤2.0/16.7||Viscosity:||≤120s / ≤80s|
|External Dimension:||2650x2400x1150 , 2200x1700x1200 , 2130x1650x1150 , 2000x1650x1100||Weight (kg):||3000 / 1800 / 1400 / 1280|
|Pressure (Mpa):||0.25~0.40||Hopper Dimension (mm)/(in):||Φ700*Φ150 / Φ28*Φ6|
API mud mixer hopper,
55Kw mud mixer hopper,
700mm mud hopper unit

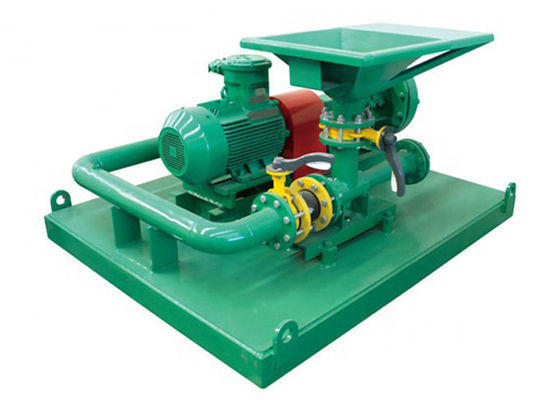

API Jet Mud Mixer
High Speed Mine Drilling Mud Mixer For Jet Grouting
The jet mud mixer is a special equipment for preparing and increasing the weight of the drilling fluid by adding bentonite, stirring, changing the density of the drilling fluid, changing the density, viscosity and dehydration of the drilling fluid. The effect of matching with shear pump is more prominent. Jet mud mixers are equipment used in oil drilling and horizontal directional drilling (HDD) together with solids control systems. The device includes a sand pump, a jet mixing hopper and a jet mixer. The jet mixer is installed on a base with pipeline valves. Safe and stable, easy to move. At the same time, a double-nozzle mud mixer can be made according to user requirements. It is composed of a solid-controlled bentonite mud mixer and a drilling mud tank jet mixer.
|Matching Pump||2xCP68-55 / CP68-55 / CP68-45 / CP56-30|
|Capacity||240㎥/h , 180㎥/h , 120㎥/h , 60㎥/h|
|Power (Kw)||2x55 / 55 / 45 / 30|
|Flow (m3/h)||2x240 / 240 / 200 / 180|
|Lift (m)/(ft)||36/118 , 33/108 , 28/92|
|Inlet Pipe (mm)/(in)||DN150/6|
|Nozzle Caliber||Φ50/2 , Φ40/1 1/2 , Φ35/1 3/8|
|Hopper Dimension (mm)/(in)||Φ700*Φ150 / Φ28*Φ6|
|Burden Speed (kg/min)/(lbs/min)||≤100/220 , ≤80/176.4 , ≤35/132.3|
|Density (g/m3)/(Ib/gal)||≤2.8/23.4 , ≤2.4/20 , ≤2.0/16.7|
|Viscosity||≤120s / ≤80s|
|Weight (kg)||3000 / 1800 / 1400 / 1280|
|External dimension||2650x2400x1150 , 2200x1700x1200 , 2130x1650x1150 , 2000x1650x1100|
|Voltage||380V/460V or customized|
Field of use
Jet mud mixers are widely used in drilling waste management, oil and gas drilling, trenchless HDD and tunnel construction, oil and mud separation, bored piling, water drilling, oil mud dehydration system, coal bed gas solid phase control system and other industries.
The main structure features
1. The sand pump and the jet mixing hopper can be installed in combination or separately, connected by pipes and valves. Sealing adopts packing and mechanical double seal, with good sealing performance.
2. The jet mud mixer can effectively change the density, viscosity and water loss rate of the mud, enhance the dispersion effect of the material, and increase the pressure head of the mixed liquid.
3. The single jet mud mixer is composed of a sand pump and a jet mixing hopper. The hopper is installed on a base with a pipeline valve. The dual-nozzle mud mixer is composed of two sand pumps and two nozzle mixing hoppers.
