2Kw Shale Shaker Power HDD Mud Recycling System 60m3/H

Basic Information
Place of Origin: Hebei China
Brand Name: Pangolin
Price: Negotiable
Packaging Details: According to customer needs
Delivery Time: 5-15work days
Payment Terms: T/T
Detail Information
Model: CSJ-FN-60C Capacity (m3/h): 60
Slurry Pump Power (Kw): 11 Slurry Pump Pressure (MPa): 1.0~2.0
Shale Shaker Power(Kw): 2 Shale Shaker Vibration Force(KN): 40
Screen Size (mm): 1700x700 Cone Number: 6
Separation Size (μm): 10-30 Total Power (KW): 13
System Max.Size(mm): 2000X1600X2250 System Weight (Kg): 1900
High Light:

1MPa HDD Mud Recycling System


2Kw Shale Shaker Mud Recycling System


Mud Cleaner Drilling Waste Management

Product Description

High Quality HDD Mud Recycling System Mud Cleaner Drilling Waste Management Long Service Life Customed Color




The domestic professional HDD trenchless mud recovery system manufacturer, the mud recovery system designed by Guanneng Solid Control, has a compact structure, convenient handling and easy use, and is widely used in HDD trenchless and CBM development fields.


This shale shaker is our latest developed solid control equipment used in oilfield drilling and it’s the advanced drilling fluid shale shaker,by absorbing the design experience and the advanced technology at home and abroad and adopting imported vibration motor. We can design duplex or triple shale shaker acoording to your requirements and can also supply relevant connectors and manifolds.Meanwhile,it can also be combined with mud cleaner as underset shale shaker. The shale shaker has the features of strong vibration,high migration speed, high permeation and large treatment capacity.


Mud cleaner is widely used in trenchless HDD, tunneling construction, city bored piling, oil & gas drilling, Drilling Waste Management, Oil Mud Seperation, environment protection, Coal Bed Gas Solids Control System, mining, Oil Sludge Dewatering Systems, Water Drilling etc.

Product parameters


Model CSJ-FN-30C CSJ-FN-60C CSJ-FN-120C CSJ-FN-200C
Capacity (m3/h) 30 60 120 200
Slurry pump Model DC-EHM-1.5C DC-EHM-3C DC-EHM-3C DC-EHM-4C
Power (Kw) 7.5 11 22 37
Pressure (MPa) 1.0~2.0
Shale shaker Power(Kw) 1.5 2 3 3
Vibration force(KN) 30 40 60 60

size (mm)

UP 1400X600 1700x700 1900X1000 2100x1200
Down 1400X600 1700x700 1900X1000 2100x1200
Cone Model FN-100 FN-150
Cone Number 3 6 12 8
Separation size (μm) 10-30
Total Power (KW) 9 13 25 40
System Max.Size(mm) 1650X1450X2150 2000X1600X2250 2170X2000X2400 2400*2300*2400
System weight (Kg) 1200 1900 2500 3500



Usage and Applicability


Drilling fluid shale shaker is the primary solids control equipment in the drilling fluid solids control system.

The shale shaker sreens the drilling fluid with great amount cuttings,separates the large-size solid particles ,and sent the drilling fluid to the next seperating equipments.

the Shale Shaker has the advantages of simple structure,reliable performance,large disposal capacity,long service life,and simple maintenance.



Structure and Operating Principle


The shale shaker is composed of feeding tank,base,screening box,and vibrating motor etc.six isolation springs sustain the screening box on the base.three same or different mesh screens are installed on the screening box working surface.

Having absorbed the latest achievements in screening machine at home and abroad and integrated the strong points of circle and rectilinear vibration, the shale shaker greatly raises the speed of carrying drill cuttings and boost through–screen quantity of drilling liquid, thus avoiding pasting on the screen. The shale shaker takes double explosion-proof vibration motors as vibrating source, and forms rectilinear movement by the action of reversal rotation vibration motors. It is especially applicable in the working conditions with stratigraphic fluctuation. Its advantages become more apparent as drilling liquid is of much higher viscosity.


Pic Show

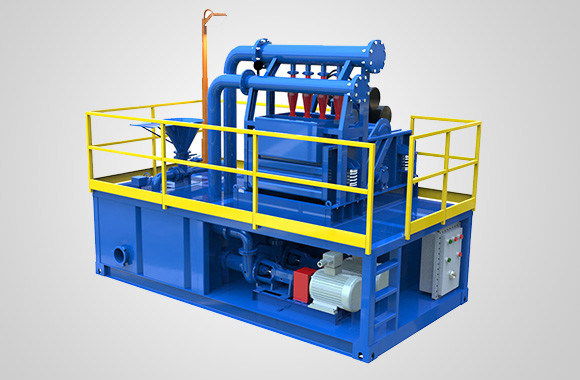

2Kw Shale Shaker Power HDD Mud Recycling System 60m3/H 0
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
3. How about the regular packing?
A: If there is no special packing requirement, we will take it as regular packing. First put them in small cartons, then put large cartons together to make sure the goods are finished.
4. How to check if the product is what you want?
A: If possible, please attach a reference picture so as not to cause any misunderstanding or any links on our website for better understanding.
5. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
6. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.
7. Competitive price:
A: Our factory can supply you the lowest price due to direct sale to customers without distributor!



Petroleum, natural gas, geothermal energy, geological exploration, groundwater exploitation, underground pipe network construction


Building bridge foundation piles,


Our goal is to make the above work easier
