1.94kw*2 Red Drilling Mud Circulation System Magnetic Start Long Term Use

Basic Information
Place of Origin: Hebei China
Brand Name: Pangolin
Price: Negotiable
Packaging Details: According to customer needs
Delivery Time: 5-15work days
Payment Terms: T/T
Detail Information
Color: Customized Motor Power: 1.94kw*2
Weight: 1638 Kg Adjustable G Force: ≤ 8G
Deck Angle Range: -1° - 5° Vibrating Mode: Linear Type
High Light:

Mud Circulation System Magnetic Start


1.94kw Drilling Mud Circulation System


drilling fluid circulation system Magnetic Start

Product Description

Red Hdd Mud Circulation System For Drilling Fluid long term use



Product parameters


Customized YES
Weight 1638 kg
Color Customized
Vibrating Mode Linear type
Motor power 1.94kw*2
Adjustable G force ≤ 8G
Deck angle range -1° - 5°
Starting mode Magnetic start
L*W*H(mm) 2761*1998*1428 or Customized
Capacity, m3/h 45, 120, 140
Vibration Motor, KW 2x0.75, 2x1.72, 2x1.94
Screen Qty, pcs 2, 3, 4
Screen Size: LxW, mm 750x900, 700x1250, 585x1165
Screen Area, m2 1.35, 2.63, 2.73


Model CSJ-HJ-30604 CSJ-HJ-301075 CSJ-HJ-601555 CSJ-HJ-1202075
Capacity (m3/h) 25 60 120
Jet pump Power(kw) 4 11 22
Mixing reducer(kw) 4 7.5 2X5.5 2X7.5
Tank volume (m3) 6 10 15 20
Size(mm) 3200X1850X1900 3800X2000X2100 5300X2000X2500 6800X2200X2500




Pangolin Drilling Tools Co., Ltd. can produce 30-200 square meters of trenchless horizontal directional crossing engineering mud recovery system, at present, has been applied in Thailand, India, Malaysia and other countries and regions trenchless projects. HK Energy can design and manufacture mud recovery systems (mud cycle systems) with different processing volumes and specifications according to the customer's trenchless drilling rig tonnage, mud pump flow and customer needs.
Shale shaker is the first phase solid control device in the drilling fluid treatment system, also known as the key solid control device in the drilling mud system, shale shaker determines the performance of the entire solid control system. Besides single shale shaker, we also could offer tandem shakers and triplicate shakers on single skid according to customers’ requirements and also the connecting manifold and mud distributor.





The shale shakers has the advantages of simple structure,reliable performance,large disposal capacity,long service life,and simple maintenance. It being provided with high vibration intensity , adjustable-pitch ,compact, reliable ,behavior and cost effective ,is known as a competitive product in the international market.



The main structure features

Intensity vibration is as high as 8G,and can adjust,can effective dry drilling cuttings

Electric screen box Angle adjustment, convenient and reliable, and the mechanical Angle adjustment for standby

Screen box sealed patent design, good sealing effect, long service life, and easy to replace

Screen box at the bottom of stainless steel materials, corrosion resistance and greatly improve the service life

Screen box overall heat treatment, which can meet high vibration intensity work long hours.



Field of use

Linear motion shale shaker are widely used for drilling mud solids control of oil & gas well drilling. In a complete mud recycling system, shale shaker is the first stage equipment for both solids control and mud cleaning. Shale shaker for solids control are devices that remove drill cuttings from the drilling fluid while circulating and drilling. By using different wire mesh screen, linear motion shaker could maximally remove the drilling cuttings and recover the valuable drilling mud back into the mud system for subsequent treatment.

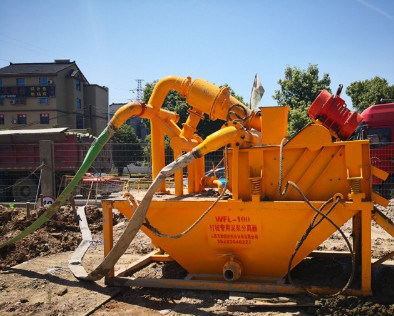

Pic Show


1.94kw*2 Red Drilling Mud Circulation System Magnetic Start Long Term Use 0





1. How to order products?

A: Please send an inquiry with a detailed project description or model.


2. How about the common packing?

A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.


3. Can I expect quality products?

A: Yes. Mature production process to ensure the quality to meet international requirements.


4. How to check the product are the exact one you want?

A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.


5. How to control quality?

A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.


6. Fast delivery time:

A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.


7. Competitive price:

A: Our factory can supply you the lowest price due to direct sale to customers without distributor!
