| Place of Origin: | HeBei China |
|---|---|
| Brand Name: | Pangolin |
| Price: | Negotiable |
| Packaging Details: | According to customer needs |
| Delivery Time: | 5-15work days |
| Payment Terms: | T/T |
| Thread: | D36 | Weight: | 500kgs |
|---|---|---|---|
| Use: | HDD Drilling, Hole Opener | Type: | Reamer |
| Bit Size: | 1050mm | Sealed Type: | Rubber Sealed |
| High Light: | hdd Pangolin Drilling Mud Motor,Pangolin hole opener directional drilling motor,Pangolin HDD Drilling Mud Motor |
||
Wide Flow Rate Range Hole Opener Drilling Mud Motor
Introduction
Downhole motor is a kind of downhole dynamic drilling tool upon the power of drilling mud. Mud stream from the outlet of mud pump flows through a by-pass valve into the motor. This stream produces pressure loss at both inlet and outlet of the pump, to push the rotor into rotating, and to transmit the torque and speed onto the bit. The downhole motor property mainly depends upon its property parameters.
Product parameters
| Weight | 500kgs |
| Bend | Accoridng Customer Drill Requirement |
| Type | Reamer |
| Machine Type | Drilling Tool |
| Material | High Manganese Steel |
| Processing Type | Forging |
| Use | HDD drilling, hole opener |
| Sealed Type | Rubber sealed |
| Color | Blue, red, green or Customized |
| Thread | D36 |
| Bit Size | 1050mm |
| Model | 5LZ95x7.0L-5-600 | 5LZ120x7.0-5-864 | 5LZ165x7.0-5-840 | 5LZ172x7.0-5-840 | 5LZ203x7.0 -5-840 |
| ToolOD mm in |
95 3 3/4 | 120 4 3/4 | 165 6 1/2 | 172 6 3/4 | 203 8 |
| Connecting Thread up down |
3 1/2REG 2 7/8IF Pin | 3 1/2REG 3 1/2IF Pin | 4 1/2REG 4 1/2IF Pin | 6 5/8REG 5 1/2FH pin | 6 5/8REG 6 5/8FH |
| LOBE | 5:06 | 5:06 | 5:06 | 5:06 | 5:06 |
| Stage | 5 | 5 | 5 | 5 | 5 |
| Flow Rate lpm gpm | 320-800 85-211 | 650-1300 171-342 | 862-1724 228-456 | 947-1894 250-500 | 1113-2225 295-588 |
| Rotory peed rpm | 124-300 | 140-280 | 87-174 | 78-154 | 79-158 |
| Output Torque N.m lb-ft |
1388 1025 | 2344 1730 | 4590 3386 | 5200 3835 | 6277 4629 |
| Max Torque N.m lb-ft |
1962 1477 | 3312 2443 | 6484 4783 | 7345 5417 | 8866 6540 |
| output power KW hb |
53 72 | 87 117 | 100 135 | 118 159 | 130 176 |
Used in
A Variety of Types & the Capabilities In accordance with the actual drilling needs,we push out high, midiem and low speed downhole motors,of a variety of types with different functional configuration and application for all working conditions.
1.Long type The torque is increased by 30%to 60%than standard ones, mud lubricating transmission shaft, straight, single and double bent.
2.High flow rate type The adoption of hollow rotor and different sizes of hard alloy jet nozzle to increase the incoming flow and bit power.

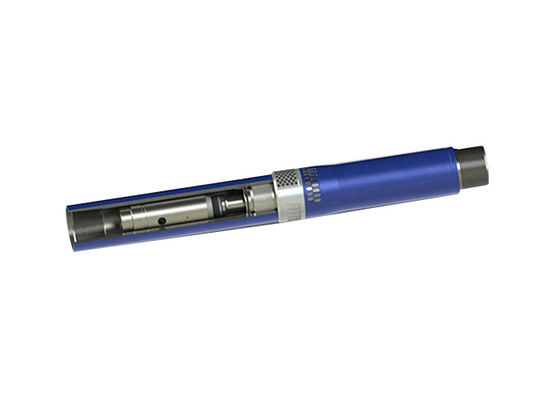

Pic Show
Pangolin (China) Construction Machinery Co., Ltd. is a drill manufacturer with complete testing equipment and strong technical force. Our products have a wide range, high quality, reasonable price, and timely delivery, which are widely used in oilfields, drilling, non-excavation fields and other industries. Our products are widely recognized and trusted by users, and can meet the ever-changing economic and social needs. To
We welcome new and old customers from all walks of life to contact us for future business relations and mutual success!
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
4. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.
5. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
6. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.
7. Competitive price:
A: Our factory can supply you the lowest price due to direct sale to customers without distributor!
