|Diameter:||3 3/8"- 8 1/2"||Use:||Well Drilling|
|Size:||79.4-300mm||Material:||Carbon Steel, Alloy Steel|
|Processing Type:||Rolling, Forging||Machine Type:||Drilling Tool, Drilling Equipment|
6 3/4'' Non Magnetic Drill Collar,
API Spiral Drill Collars,
Nonmagnetic Spiral Drill Collars
Spiral Non Magnetic Drill Collars

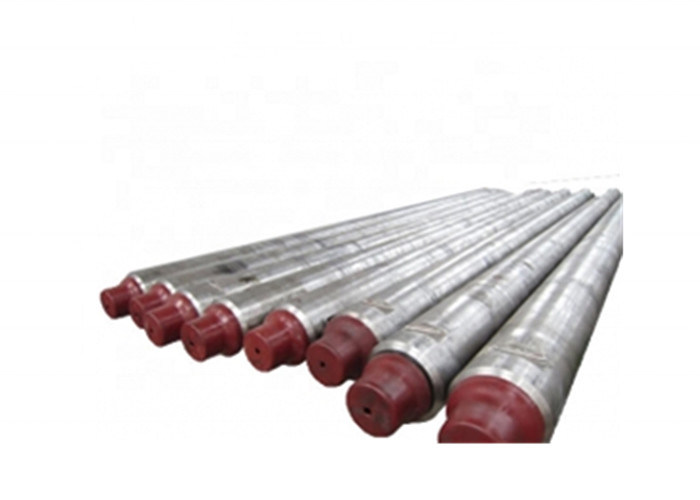

Non Magnetic Drill Collar Spiral Drill Collars For Oil Field Equipment

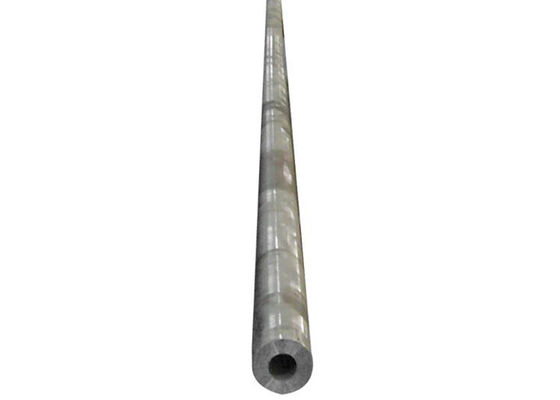

The non-magnetic drill collar is made of low-carbon high-chromium manganese alloy steel. It is refined by strict chemical composition, and its mechanical properties are obtained through forging. When the magnetic field strength is 1×105 / 4marea / m, the relative permeability bias of the non-magnetic drill collar r≤1.010. Magnetic induction intensity gradient of non-magnetic drill collar at random intervals of 100mm along the inner hole ≤0.05
Non-magnetic drill collars have unusual design requirements, thus creating unique corrosion resistance issues. The drill collar is the bottom part of the drill string. Its weight generates a force on the drill bit, which enables the drill bit to be drilled out, and the rigidity of the drill collar prevents the transmission of force from buckling.
It has good low permeability and high strength. Excellent mechanical properties, excellent intergranular corrosion resistance, crack resistance and wear resistance.
|Machine Type||Drilling Tool|
|bit size||3 3/4"(95mm)|
|connected thread||2 7/8''reg|
|flow rate||162-578 lpm|
|working pressure loss||3.2mpa|
|output torque||613 N.m|
|Applicable Industries||Building Material Shops, Machinery Repair Shops, Construction works , Energy & Mining|
|Model||ToolOD mm||Connecting Thread||For Mud motor||IADC|
|4 1/8”||108||2 7/8IF||5LZ95x7.0L-5-600||
|6 3/4”||172||4 1/2IF||5LZ165x7.0-5-840|
|7 1/2”||190||5 1/2FH||5LZ172x7.0-5-840|
|8 1/4”||210||6 5/8FH||5LZ203x7.0 -5-840|
Pipeline transportation, boiler pipes, hydraulic/automobile pipes, oil/gas drilling, food/beverage/dairy products, machinery, chemicals, mining, building decoration, special uses.
