Tank Volume: | 5-30 ㎥ | Total Power: | 25-184 Kw |
---|---|---|---|
Separation Stage: | 2stage / 3stage | Screen Area: | 2.2-8.4 ㎡ |
Customized: | YES | Capacity: | 50-240 ㎥/h (200 GPM ,300 GPM,400GPM,1000 GPM) |
Total Weight: | 5.5-20 T | Land Transport Dimension (mm): | Customized |
High Light: | rainproof Mud Recycling System,400GPM Drilling Mud Pump,500GPM Mud Recycling System |

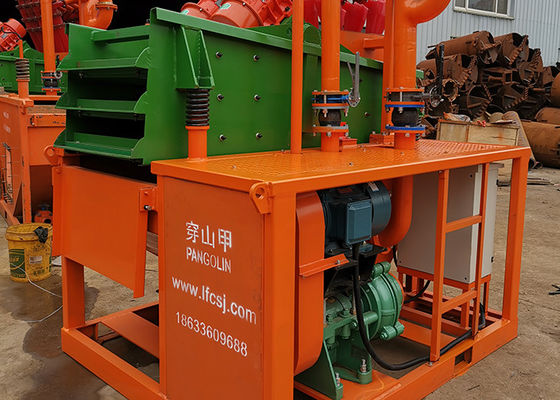

HDD Mud Recycling System With Modular Design And Small Footprint
Introduction
The HDD mud recovery system is designed for horizontal directional drilling (HDD) RIGS.
Depending on drilling mud requirement, a HDD mud recycling system can including shale shaker, desander cyclone, desilter cyclone, decanter centrifuge, mud tank, mud agitator, mud gun, transfer pump, etc. The shaker screen mesh size will depending on a shaker performance for mud flow and drilling mud separation at different mud requirement.
Product parameters
Customized | YES |
Capacity | 50-240 ㎥/h (200-1000 GPM) |
Screen Area | 2.2-8.4 ㎡ |
Separation Stage | 2stage / 3stage |
Tank Volume | 5-30 ㎥ |
Total Power | 25-184 Kw |
Total Weight | 5.5-20 t |
Land Transport Dimension (mm) | customized |
Screen material | Polyurethane |
Cyclone (mm) | 250 -900 |
Impeller material | Cr26 |
Application | Drilling |
Specification | Can be customized according to requirements |
Model | CSJ-FN-30C | CSJ-FN-60C | CSJ-FN-120C | CSJ-FN-200C | |
Capacity (m3/h) | 30 | 60 | 120 | 200 | |
Slurry pump | Model | DC-EHM-1.5C | DC-EHM-3C | DC-EHM-3C | DC-EHM-4C |
Power (Kw) | 7.5 | 11 | 22 | 37 | |
Pressure (MPa) | 1.0~2.0 | ||||
Shale shaker | Power(Kw) | 1.5 | 2 | 3 | 3 |
Vibration force(KN) | 30 | 40 | 60 | 60 | |
Screen |
UP | 1400X600 | 1700x700 | 1900X1000 | 2100x1200 |
Down | 1400X600 | 1700x700 | 1900X1000 | 2100x1200 | |
Cone Model | FN-100 | FN-150 | |||
Cone Number | 3 | 6 | 12 | 8 | |
Separation size (μm) | 10-30 | ||||
Total Power (KW) | 9 | 13 | 25 | 40 | |
System Max.Size(mm) | 1650X1450X2150 | 2000X1600X2250 | 2170X2000X2400 | 2400*2300*2400 | |
System weight (Kg) | 1200 | 1900 | 2500 | 3500 |
The main structure features
1. Good capacity and performance: the system capacity is up to 240m3/h (1000GPM), can meet the mud treatment of large-scale trenchless projects.
2. The equipment parts are fast connected, easy to disassemble, saving time.
3. High wear-resistant polyurethane cyclone is the same as international brands, and can be use more than 3,800 hours, long service life, interchangeable.
4. Explosion-proof light to meet night construction, easy to operate and safe.
Pic Show
