1800kg Solids Control Drilling Mud Pump Jet Mixing Hopper dust proof

Basic Information
Place of Origin: Hebei China
Brand Name: Pangolin
Price: Negotiable
Packaging Details: According to customer needs
Delivery Time: 5-15work days
Payment Terms: T/T
Detail Information
Density (g/m3)/(Ib/gal): ≤2.8/23.4 , ≤2.4/20 , ≤2.0/16.7 Burden Speed (kg/min)/(lbs/min): ≤100/220 , ≤80/176.4 , ≤35/132.3
Weight (kg): 3000 / 1800 / 1400 / 1280 Flow (m3/h): 2x240 / 240 / 200 / 180
Viscosity: ≤120s / ≤80s External Dimension: 2650x2400x1150 , 2200x1700x1200 , 2130x1650x1150 , 2000x1650x1100
Pressure (Mpa): 0.25~0.40 Hopper Dimension (mm)/(in): Φ700*Φ150 / Φ28*Φ6
High Light:

Solids Control Drilling Mud Pump

,

Drilling Mud Pump hopper

,

jet mixing hopper 1800kg


Product Description

Solid Control Jet Mud Mixer

Used In Construction / Chemicals / Oilfield Solid Control Jet Mud Mixer




The main structure features
1. The sand pump and the jet mixing hopper can be installed in combination or separately, connected by pipes and valves. Sealing adopts packing and mechanical double seal, with good sealing performance.
2. The jet mud mixer can effectively change the density, viscosity and water loss rate of the mud, enhance the dispersion effect of the material, and increase the pressure head of the mixed liquid.
3. The single jet mud mixer is composed of a sand pump and a jet mixing hopper. The hopper is installed on a base with a pipeline valve. The dual-nozzle mud mixer is composed of two sand pumps and two nozzle mixing hoppers.



Advantages
The drilling fluid flows into the jet pump at a certain pressure. The fluid in the jet pump is first ejected from the jet nozzle, and then flows into the shear tube through the mixing chamber. The material is added from the hopper to the mixing hopper, and enters the shear tube with the airflow. In this process, they are dispersed and mixed. The mixed fluid flows out of the shear tube and enters the drilling fluid tank.
The shear tube is hollow and can gradually expand on a certain curved surface. It is mainly used to expand the shearing force in the tube, further disperse the material, increase the mixing head, and facilitate the material to enter the circulation tank.
The shear tube has a fast flow rate under low pressure and a slow flow rate under high pressure, using Bernoulli effect. When the fluid is ejected from the nozzle at a high speed, the pressure in the chamber is relatively low; after the fluid enters the shear tube, the cross section increases, the flow velocity decreases, and the pressure increases.



Product parameters



Matching Pump 2xCP68-55 / CP68-55 / CP68-45 / CP56-30
Capacity 240㎥/h , 180㎥/h , 120㎥/h , 60㎥/h
Power (Kw) 2x55 / 55 / 45 / 30
Flow (m3/h) 2x240 / 240 / 200 / 180
Lift (m)/(ft) 36/118 , 33/108 , 28/92
Pressure (Mpa) 0.25~0.40
Inlet Pipe (mm)/(in) DN150/6
Nozzle Caliber Φ50/2 , Φ40/1 1/2 , Φ35/1 3/8
Hopper Dimension (mm)/(in) Φ700*Φ150 / Φ28*Φ6
Burden Speed (kg/min)/(lbs/min) ≤100/220 , ≤80/176.4 , ≤35/132.3
Density (g/m3)/(Ib/gal) ≤2.8/23.4 , ≤2.4/20 , ≤2.0/16.7
Viscosity ≤120s / ≤80s
Weight (kg) 3000 / 1800 / 1400 / 1280
External dimension 2650x2400x1150 , 2200x1700x1200 , 2130x1650x1150 , 2000x1650x1100
Voltage 380V/460V or customized



Field of use
Jet mud mixers are widely used in drilling waste management, oil and gas drilling, trenchless HDD and tunnel construction, oil and mud separation, bored piling, water drilling, oil mud dehydration system, coal bed gas solid phase control system and other industries.



Pic Show

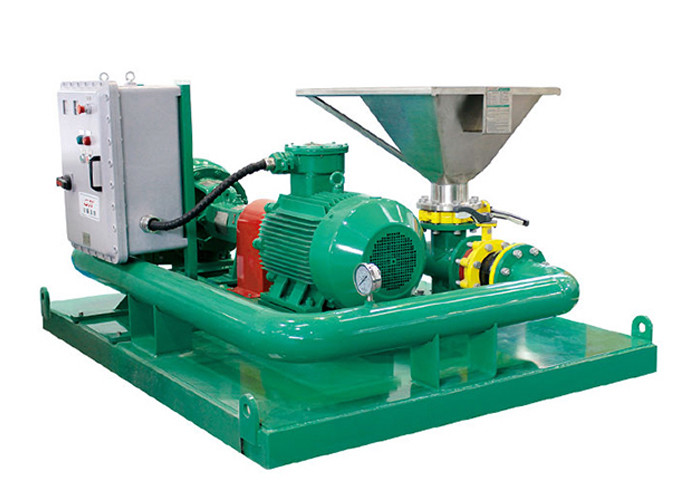

1800kg Solids Control Drilling Mud Pump Jet Mixing Hopper dust proof 0



Drill bit hole opener HDD drilling reamer positioning drilling tool 1



Pangolin (China) Construction Machinery Co., Ltd. is a drill manufacturer with complete testing equipment and strong technical force. Our products have a wide range, high quality, reasonable price, and timely delivery, which are widely used in oilfields, drilling, non-excavation fields and other industries. Our products are widely recognized and trusted by users, and can meet the ever-changing economic and social needs. To
We welcome new and old customers from all walks of life to contact us for future business relations and mutual success!



Drill bit hole opener HDD drilling reamer positioning drilling tool 2



FAQ:

1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.

2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.

3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.

4. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.

5. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.

6. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.

7. Competitive price:
A: Our factory can supply you the lowest price due to direct sale to customers without distributor!
