|Name:||Jet 120m3/H Drilling Mud Mixer In Solid Control Process||Keyword:||Drilling Mud Mixer|
|Flow (m3/h):||2x240 / 240 / 200 / 180||Voltage:||380V/460V Or Customized|
|Matching Pump:||2xCP68-55 / CP68-55 / CP68-45 / CP56-30||Power (Kw):||2x55 / 55 / 45 / 30|
|Pressure (Mpa):||0.25~0.40||Inlet Pipe (mm)/(in):||DN150/6|
120m3/h drilling mud mixer,
solid control process drilling mud mixer,
solid control process jet mud mixer
120 m3/h high quality drilling jet mud mixer for sale
Jet Mud Mixer Is A Unit Used For Petroleum Drilling And Horizontal Directional Drilling
Jet Mud mixers are specialized equipment for adding and mixing bentonite to prepare and increase drilling fluid weight, change fluid density, change Mud density, viscosity, and dehydrate. The effect is more prominent matching with Shear Pump. Jet mud mixer is a unit used together with the solids control system for petroleum drilling and horizontal directional drilling(HDD). The unit includes one sand pump, one jet mixing hopper and one jet mixer that are installed in a base with pipe valves. It is safe and stable and can be moved conveniently. At the same time,we can make Twin Jet Mud Mixer according to the user requirements.It is designed by solids control bentonite mud mixer,drilling mud tank jet mixer.
The main structure features
1. Sand pump and jet mixing hopper can either be combined or be installed separately, and they are connected by pipelines and valves. Seals adopt packing and mechanical double seal, with good sealing performance.
2. Jet mud mixer can change the density, viscosity and water loss effectively, and also enhance material dispersion effect, improve the mixed liquid pressure head.

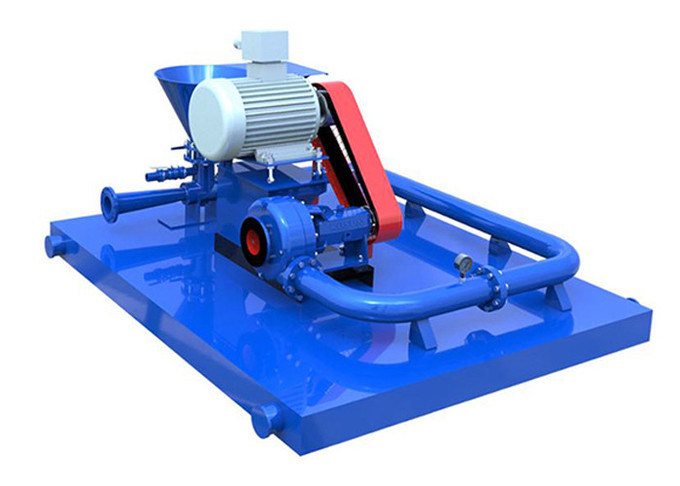

3. The single-spray mud mixer consists of a sand pump and a shotcrete mixing hopper and is installed in the base with a pipe valve. The double-sided spray mud mixer consists of two sand pumps and two spray mixing hoppers.
The drilling fluid flow into the jet pump with certain pressure,in the jet pump fluid spouts out from jet nozzle first, then flows into shear pipe through mixing chamber. Materials will be added from hopper to mixing hopper, and move into shear pipe with the flow. During this process, they are dispersed and mixed. The mixture will enter into drilling fluid tank when flows out of the shear pipe.
The shear pipe is hollow and it can expand gradually based on certain curved surface. It is mainly used to enlarge shearing force inside the pipe to disperse the material further and increase the mixture pressure head, this will make it easy to enter into circulating tank.
Bernoulli effect is adopted in shear pipe which is flow rate is rapid with low pressure, and slow with high pressure. Pressure is low in the chamber when fluid spouts out in high speed from the jet nozzle; when fluid enters into the shear pipe, its section is enlarged and flow rate decreased so the pressure rises.
|Voltage||380V/460V or customized|
|Matching Pump||2xCP68-55 / CP68-55 / CP68-45 / CP56-30|
|Capacity||240㎥/h , 180㎥/h , 120㎥/h , 60㎥/h|
|Power (Kw)||2x55 / 55 / 45 / 30|
|Flow (m3/h)||2x240 / 240 / 200 / 180|
|Lift (m)/(ft)||36/118 , 33/108 , 28/92|
|Inlet Pipe (mm)/(in)||DN150/6|
|Nozzle Caliber||Φ50/2 , Φ40/1 1/2 , Φ35/1 3/8|
|Hopper Dimension (mm)/(in)||Φ700*Φ150 / Φ28*Φ6|
|Burden Speed (kg/min)/(lbs/min)||≤100/220 , ≤80/176.4 , ≤35/132.3|
|Density (g/m3)/(Ib/gal)||≤2.8/23.4 , ≤2.4/20 , ≤2.0/16.7|
|Viscosity||≤120s / ≤80s|
|Weight (kg)||3000 / 1800 / 1400 / 1280|
|External dimension||2650x2400x1150 , 2200x1700x1200 , 2130x1650x1150 , 2000x1650x1100|
Field of use
Jet mud mixer is widely used in these industries: Drilling Waste Management, Oil and Gas Drilling, Trenchless HDD & Tunnelling, Oil Mud Seperation, Bored Piling, Water Drilling, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System.
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
4. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
5. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.
6. Competitive price:
A: Our factory can supply you the lowest price due to direct sale to customers without distributor!
