Tungsten Carbide Tricone Drill Bit 172mm Three Cone Bit

Basic Information
Place of Origin: HeBei China
Brand Name: Pangolin
Price: Negotiable
Packaging Details: According to customer needs
Delivery Time: 5-15work days
Payment Terms: T/T
Detail Information
Size: 8 1/2" Color: Blue, Red, Green Or Customized
Diameter: 9 7/8inch Bearing: Rubber Sealed Bearing
Applicable Industries: Construction Works , Energy And Mining Type: Drill Bit
High Light:

Tungsten Carbide Tricone Drill Bit

,

172mm Three Cone Bit

,

rotary tricone rock drill bit


Product Description

Tricone Roller Cone Bits

Single Roller Cone Bits Tungsten Carbide Insert Tricone Thirds



Introduction
Cutting Structure
In response to the characteristics that inserts in different areas on the cone have different cutting actions, conical inserts are placed in permanent contact area and wedge inserts are placed in alternative contact area so that the drilling efficiency is greatly improved. Wear resistance of cutting structure is enhanced by setting diamond inserts in the permanent contact area of the cone where inserts are severely worn. Tungsten carbide inserts are placed on cone top face to protect cone body from abrasive erosion.
Gauge Structure
With active cutting gauge protection inserts on bit body, the bit has good gauge protection and up drill capability.
Bearing Structure
High precision journal bearing. Balls lock the cone.Hardface heard bearing surface. Cone bearing inlaid with friction-reducing alloy. Abrasion resistance and seizure resistance of the bearing are improved. Compared with three cone bit, the leg bearing is bigger, so it can receive higher WOB and high reliability.
Hydraulic Design
Small angled watercourse design increased the shirttail thickness and can effectively prevent the watercourse erosion.Optirnized hydraulics structure improves the clearing capability and increases ROP.
Product Application
It is suitable for sidetracking, deep well drilling and old well repairing.


Product parameters



Applicable Industries Construction works , Energy and Mining
Type Drill Bit
Machine Type Drilling Equipment
Material Tungsten Carbide
Processing Type Forging
Use Well Drilling
Application Rock Drilling
Color Blue, red, green or Customized
Size 8 1/2"
Diameter 9 7/8inch
Bearing Rubber sealed bearing



Model

ToolOD
mm in

Connecting Thread
up down

LOBE Stage Flow Rate lpm gpm Rotory peed rpm

Output Torque
N.m lb-ft

Max Torque
N.m lb-ft

output power
KW hb

5LZ95x7.0L-5-600 95 3 3/4 3 1/2REG 2 7/8IF Pin 5:6 5 320-800 85-211 124-300 1388 1025 1962 1477 53 72
5LZ120x7.0-5-864 120 4 3/4 3 1/2REG 3 1/2IF Pin 5:6 5 650-1300 171-342 140-280 2344 1730 3312 2443 87 117
5LZ165x7.0-5-840 165 6 1/2 4 1/2REG 4 1/2IF Pin 5:6 5 862-1724 228-456 87-174 4590 3386 6484 4783 100 135
5LZ172x7.0-5-840 172 6 3/4 6 5/8REG 5 1/2FH pin 5:6 5 947-1894 250-500 78-154 5200 3835 7345 5417 118 159
5LZ203x7.0 -5-840 203 8 6 5/8REG 6 5/8FH 5:6 5 1113-2225 295-588 79-158 6277 4629 8866 6540 130 176


Features
With particular structure of the cone,equal worn of the compacts in permanent contact area and alternative contact area of the bit is realized.
Wear resistance of the cutting structure is enhanced by setting PDC cutters in the permanent contact area of the cone where compacts are most severely worn.
Optimized hydraulics structure improved the cleaning ability of hydraulic system on cone and bottom hole,and assure higher ROP.
The bit has excellent gage protection and up reaming abilities by setting active cutting conical spherical gage compacts on head body.


Pic Show

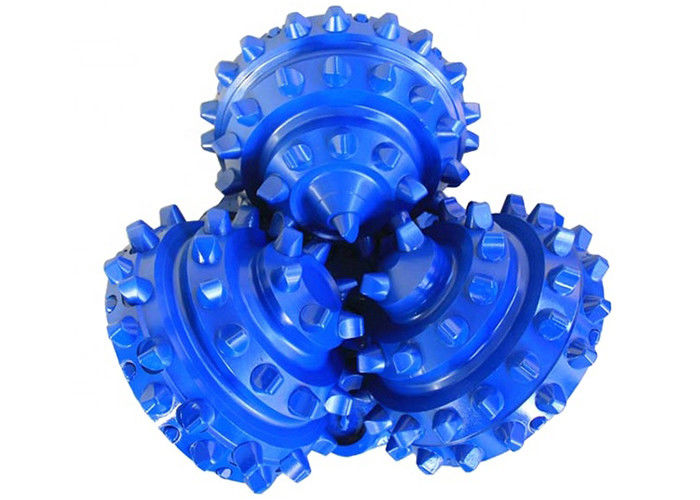

Tungsten Carbide Tricone Drill Bit 172mm Three Cone Bit 0

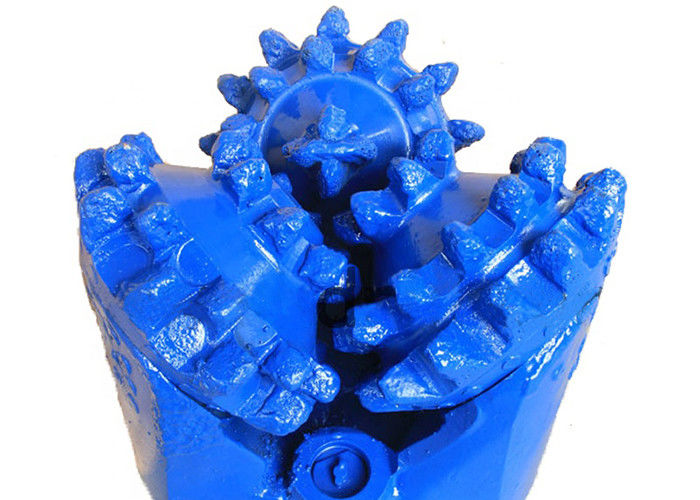

Tungsten Carbide Tricone Drill Bit 172mm Three Cone Bit 1

Drill bit hole opener HDD drilling reamer positioning drilling tool 1



Pangolin (China) Construction Machinery Co., Ltd. is a drill manufacturer with complete testing equipment and strong technical force. Our products have a wide range, high quality, reasonable price, and timely delivery, which are widely used in oilfields, drilling, non-excavation fields and other industries. Our products are widely recognized and trusted by users, and can meet the ever-changing economic and social needs. To
We welcome new and old customers from all walks of life to contact us for future business relations and mutual success!



Drill bit hole opener HDD drilling reamer positioning drilling tool 2



FAQ:

1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.

2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.

3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.

4. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.

5. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.

6. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.

7. Competitive price:
A: Our factory can supply you the lowest price due to direct sale to customers without distributor!
