| Place of Origin: | HeBei China |
|---|---|
| Brand Name: | Pangolin |
| Price: | Negotiable |
| Packaging Details: | According to customer needs |
| Delivery Time: | 5-15work days |
| Payment Terms: | T/T |
| Product Name: | Roller Cone Bits | Place Of Origin:: | Hebei, China |
|---|---|---|---|
| Applicable Industries: | Construction Works , Energy And Mining | Machine Type: | Drilling Equipment |
| Material: | Carbide | Diameter: | 9 7/8inch |
| Size: | 8 1/2" | Processing Type: | Forging |
| High Light: | Mining TCI Tricone Bits,oil rigs tci tricone bits,oil rigs spherical blades tci drill bit |
||

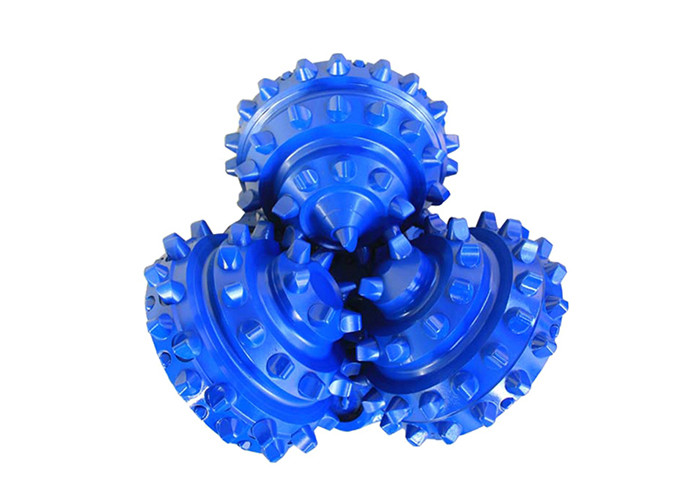

Mining tri-cone TCI three-cone rock roller drill bits for oil rigs and mining
Describe
We provide and supply TCI Tricon drill bits to ensure comprehensive quality. The product offers a variety of carbide blades, such as spherical blades for very hard rocks or tapered blades for softer rocks. The number of rows of blades depends on the type of application and the size of the holes to be drilled. It is suitable for soft and hard formulas.
Features
Durable tricone:
• Suitable for soft and hard formulations
• The best quality
Sealed bearing Cone drill bit, with or without gauge protection:
• These are the best performing and long-lasting tricones on the market
• Sealed bearings will be better than open bearings
• Instrument protection greatly prolongs the service life of the drill bit. With or without instrument protection
Open bearing Taper drill bit:
• Open bearing Tricone can be instrument protected or not instrument protected
• These tricone drill bits have extraordinary value, good performance and low cost
• Instrument protection greatly increases the life of the drill bit
Product parameters
| Applicable Industries | Construction works , Energy and Mining |
| Type | Drill Bit |
| Machine Type | Drilling Equipment |
| Material | Carbide |
| Processing Type | Forging |
| Use | Well Drilling |
| Application | Rock Drilling |
| Color | Blue, red, green or Customized |
| Size | 8 1/2" |
| Diameter | 9 7/8inch |
| Bearing | Rubber sealed bearing |
| Model |
ToolOD mm in |
Connecting Thread up down |
LOBE | Stage | Flow Rate lpm gpm | Rotory peed rpm |
Output Torque N.m lb-ft |
Max Torque N.m lb-ft |
output power KW hb |
| 5LZ95x7.0L-5-600 | 95 3 3/4 | 3 1/2REG 2 7/8IF Pin | 5:6 | 5 | 320-800 85-211 | 124-300 | 1388 1025 | 1962 1477 | 53 72 |
| 5LZ120x7.0-5-864 | 120 4 3/4 | 3 1/2REG 3 1/2IF Pin | 5:6 | 5 | 650-1300 171-342 | 140-280 | 2344 1730 | 3312 2443 | 87 117 |
| 5LZ165x7.0-5-840 | 165 6 1/2 | 4 1/2REG 4 1/2IF Pin | 5:6 | 5 | 862-1724 228-456 | 87-174 | 4590 3386 | 6484 4783 | 100 135 |
| 5LZ172x7.0-5-840 | 172 6 3/4 | 6 5/8REG 5 1/2FH pin | 5:6 | 5 | 947-1894 250-500 | 78-154 | 5200 3835 | 7345 5417 | 118 159 |
| 5LZ203x7.0 -5-840 | 203 8 | 6 5/8REG 6 5/8FH | 5:6 | 5 | 1113-2225 295-588 | 79-158 | 6277 4629 | 8866 6540 | 130 176 |
Used in
Tri-cone bit is a decelerating bit. It is based on the fact that the speed of the cone is less than the speed of the bit. It is suitable for sidetracking of old wells and deepening of small boreholes under high speed and high drilling pressure.
Pic Show
Pangolin (China) Construction Machinery Co., Ltd. is a drill manufacturer with complete testing equipment and strong technical force. Our products have a wide range, high quality, reasonable price, and timely delivery, which are widely used in oilfields, drilling, non-excavation fields and other industries. Our products are widely recognized and trusted by users, and can meet the ever-changing economic and social needs. To
We welcome new and old customers from all walks of life to contact us for future business relations and mutual success!
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
4. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.
5. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
6. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.
7. Competitive price:
A: Our factory can supply you the lowest price due to direct sale to customers without distributor!
