| Place of Origin: | HeBei China |
|---|---|
| Brand Name: | Pangolin |
| Price: | Negotiable |
| Packaging Details: | According to customer needs |
| Delivery Time: | 5-15work days |
| Payment Terms: | T/T |
| Diameter: | 9 7/ 8 Inch | Size: | 8 1/2" |
|---|---|---|---|
| Type: | Drill Bit | Color: | Blue, Red, Green Or Customized |
| Bearing: | Rubber Sealed Bearing | Applicable Industries: | Construction Works , Energy And Mining |
| High Light: | 8 1/2 inch Roller Cone Drill Bit,Blue Roller Cone Drill Bit,Sealed Bearing roller cone bits |
||

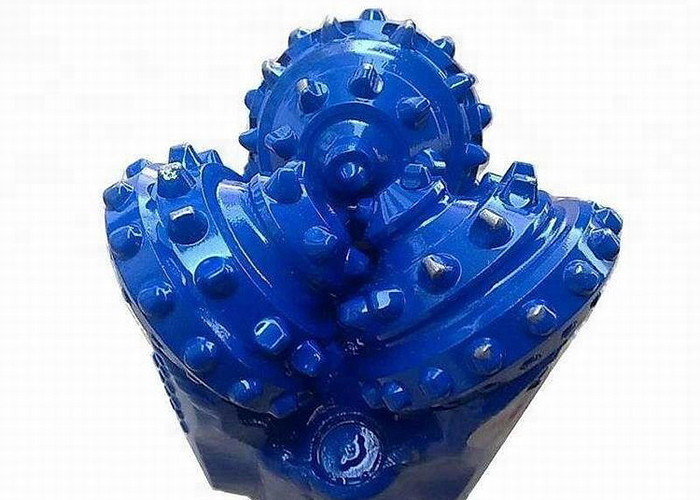

Sealed Bearing Roller Cone Bits
Roller Cone Bits Factory Direct Sale For Core Barrel With Disorderly Step Tooth Bits
Features
With particular structure of the cone,equal worn of the compacts in permanent contact area and alternative contact area of the bit is realized.
Wear resistance of the cutting structure is enhanced by setting PDC cutters in the permanent contact area of the cone where compacts are most severely worn.
Optimized hydraulics structure improved the cleaning ability of hydraulic system on cone and bottom hole,and assure higher ROP.
The bit has excellent gage protection and up reaming abilities by setting active cutting conical spherical gage compacts on head body.
Product parameters
| Applicable Industries | Construction works , Energy and Mining |
| Type | Drill Bit |
| Machine Type | Drilling Equipment |
| Material | Carbide |
| Processing Type | Forging |
| Use | Well Drilling |
| Application | Rock Drilling |
| Color | Blue, red, green or Customized |
| Size | 8 1/2" |
| Diameter | 9 7/8inch |
| Bearing | Rubber sealed bearing |
| Model |
ToolOD |
Connecting Thread |
LOBE | Stage | Flow Rate lpm gpm | Rotory peed rpm |
Output Torque |
Max Torque |
output power |
| 5LZ95x7.0L-5-600 | 95 3 3/4 | 3 1/2REG 2 7/8IF Pin | 5:6 | 5 | 320-800 85-211 | 124-300 | 1388 1025 | 1962 1477 | 53 72 |
| 5LZ120x7.0-5-864 | 120 4 3/4 | 3 1/2REG 3 1/2IF Pin | 5:6 | 5 | 650-1300 171-342 | 140-280 | 2344 1730 | 3312 2443 | 87 117 |
| 5LZ165x7.0-5-840 | 165 6 1/2 | 4 1/2REG 4 1/2IF Pin | 5:6 | 5 | 862-1724 228-456 | 87-174 | 4590 3386 | 6484 4783 | 100 135 |
| 5LZ172x7.0-5-840 | 172 6 3/4 | 6 5/8REG 5 1/2FH pin | 5:6 | 5 | 947-1894 250-500 | 78-154 | 5200 3835 | 7345 5417 | 118 159 |
| 5LZ203x7.0 -5-840 | 203 8 | 6 5/8REG 6 5/8FH | 5:6 | 5 | 1113-2225 295-588 | 79-158 | 6277 4629 | 8866 6540 | 130 176 |
Used in
Three cone bit is a kind of deceleration bit, which is the speed of cone is smaller than the speed of drill, mainly disorderly cutting broken rock. It is suitable for old well sidetracking and deepening the slim hole drilling operation under high rotary speed and drilling pressure.
