|Machine Type:||Carbon Steel||Lobe:||4|
|Output Torque:||613 N.m||Flow Rate:||162-578 Lpm|
|Rotory Speed:||121-432rpm||Output Power:||36kw|
Claw Drill Bit Sonde Housing,
trihawk Carbon Steel drill Bit,
3 3/4" Eagle Claw Bits

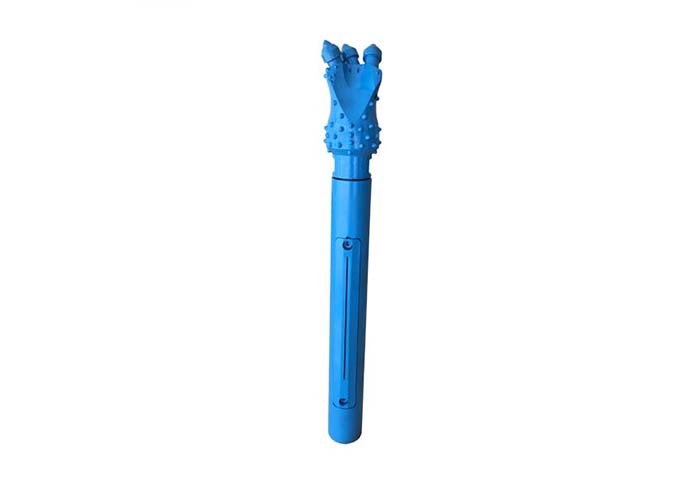

Carbon Steel Eagle Claw Sonde Housing Guide Drill Bits
Horizontal Directional Drilling Sonde Housing With Eagle Claw Drill Bits
Trenchless drill pipe application is a construction technology that uses cliff soil drilling tools, pipeline detection and other technical means to lay, repair, and replace underground pipelines without excavation on the surface. It uses a drilling rig placed on the surface to form a hole by means of water jet or squeeze, and receives signals from the surface drill bit to control the drilling trajectory. There are three stages of retreat.
|Machine Type||Drilling Tool|
|bit size||3 3/4"(95mm)|
|connected thread||2 7/8''reg|
|flow rate||162-578 lpm|
|working pressure loss||3.2mpa|
|output torque||613 N.m|
|Applicable Industries||Building Material Shops, Machinery Repair Shops, Construction works , Energy & Mining|
|Model||ToolOD mm||Connecting Thread||For Mud motor||IADC|
|6 1/2”||165.1||3 1/2REG||5LZ120x7.0-5-864|
|8 1/2”||215.9||4 1/2REG||5LZ165x7.0-5-840|
|9 1/2”||241.3||6 5/8REG||5LZ172x7.0-5-840|
|10 5/8”||269.9||6 5/8REG||5LZ203x7.0 -5-840|
In connection mode, the pilot drill has direct connection and octagon connection.
The signal pole can be installed on the side or on the back.
According to the construction needs of different customers, a multi-line design is adopted.
The integral drill bit adopts wear-resistant alloy precision casting molding technology.
Drill claw adopts wear-resistant high alloy and wear-resistant welding process.
Signal probe loading and unloading protection design, convenient loading and unloading.
The signal transmission slot is closed with non-metal, and the signal penetration is strong.
The signal transmission slot is evenly distributed to ensure that the guide drill does not interfere with the transmission signal when rotating.
Design of directional positioning groove, used for directional positioning when the signal rod is loaded once.
It is suitable for horizontal drilling of various complex formations.
Suitable for laying materials of different diameters and different weights.
It is applicable to the thrust and return force requirements of ground drilling rigs. Choose different types of drilling tools to drill.
Suitable for drill rods and tools of different specifications.
Choose different types of drilling tools to suit the working conditions of different geological rocks.
